Choosing the right electrical enclosure is essential for ensuring the safety and longevity of your electrical equipment, whether it is installed indoors or outdoors. With various types of enclosures available, each providing different levels of protection against environmental hazards, it is important to understand the NEMA ratings. These ratings indicate the specific environments an enclosure is designed to withstand.
What is a NEMA Rating?
A NEMA rating, established by the National Electrical Manufacturers Association, is a standard that defines the protective qualities of electrical enclosures. These ratings indicate the specific environmental conditions an enclosure is designed to withstand, ensuring it can protect electrical equipment from hazards like dust, water, and corrosion.
NEMA ratings range from basic indoor protection (like NEMA 1) to robust outdoor protection (like NEMA 6P).
Understanding what a NEMA rating is helps you make informed decisions when selecting an enclosure, ensuring it meets your specific needs. For example, a NEMA 3R rating means the enclosure is suitable for outdoor use, protecting against rain and snow, while a NEMA 4X rating provides additional protection against corrosion, ideal for harsh environments.
By selecting the correct NEMA-rated enclosure, you can ensure the safety and longevity of your electrical equipment, whether it’s installed indoors or outdoors.
![indoor electrical enclosure](https://media.electricalpowerandcontrol.com/wp-content/uploads/2024/06/05192209/indoor-electrical-enclosure-scaled.jpg)

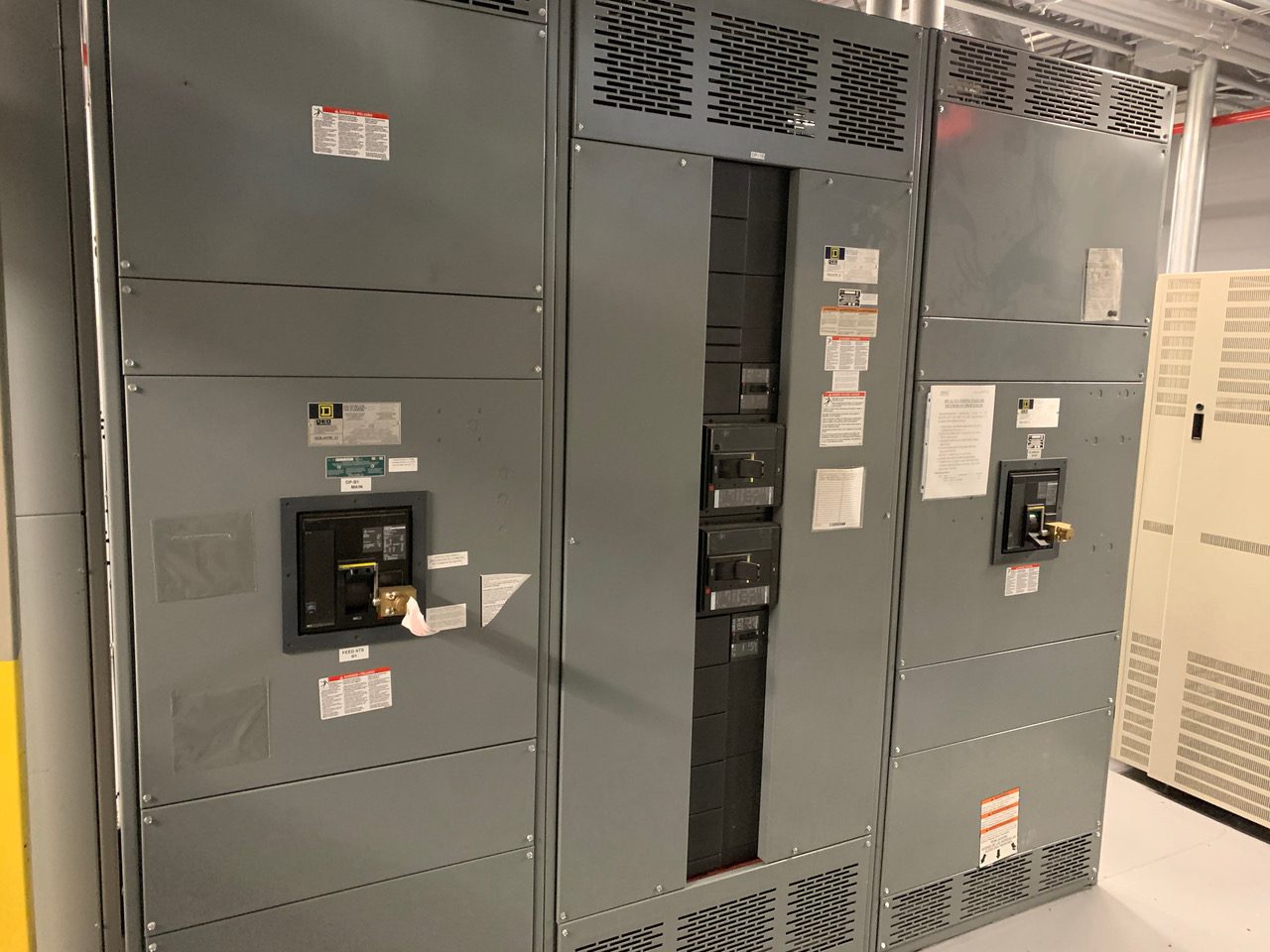

NEMA Ratings for Indoor Enclosures
NEMA 1: Basic Protection
NEMA 1 enclosures provide basic protection for indoor environments. These enclosures are designed to protect electrical equipment against light dirt and accidental contact with the equipment. NEMA 1 enclosures are typically used where environmental conditions are controlled and minimal exposure to damaging elements is expected.
Common applications could include:
- Indoor areas of industrial facilities
- Control rooms
- Switchgear rooms
- Light assembly areas
- Warehouse packing stations
- Finished goods storage areas
While they offer limited protection compared to higher-rated enclosures, NEMA 1 enclosures are sufficient for many indoor applications where the risk of exposure to harsher elements is low.
NEMA 2: Basic + Minor Splashes
NEMA 2 enclosures offer all the protection of NEMA 1 enclosures, with the benefit of protecting against minor splashes and drips of non-corrosive liquids.
This makes them suitable for indoor environments where there is a possibility of occasional liquid exposure, such as:
- Laboratories
- Food processing areas
- Certain manufacturing facilities
These enclosures prevent light moisture from interfering with the electrical equipment, ensuring continued operation and safety. While they provide more protection than NEMA 1 enclosures, they are not designed for heavy washdowns or areas with significant exposure to liquids.
NEMA 5: Airborne Dust Protection
NEMA 5 enclosures provide enhanced protection against airborne dust, dirt, and fibers, making them suitable for more demanding indoor environments. These enclosures are often used in industrial settings, including:
- Manufacturing plants
- Power plants
- Recycling facilities
The design of NEMA 5 enclosures ensures that dust and other airborne contaminants do not penetrate the enclosure, which protects the electrical components inside. This level of protection helps maintain the reliability and longevity of the equipment, preventing potential malfunctions or failures caused by dust accumulation.
NEMA 12: Upgraded Indoor Protection
NEMA 12 enclosures are like NEMA 5 but with upgraded protection. They’re built to shield against circulating dust and falling dirt, as well as drips of non-corrosive liquids, which is why they’re a strong pick for tough indoor settings like:
- Manufacturing floors
- Storage facilities
- Other types of industrial plants
These enclosures are specially built to stop dust and other unwanted particles from getting in, which helps ensure your electrical gear stays safe and dependable. They’re also designed to handle light splashes of liquids, so they’re a good choice for spots where you might get the occasional splash or spill.
NEMA 12K: With Knockouts
NEMA 12K enclosures offer all the protective features of NEMA 12 enclosures with the added convenience of knockouts.
Knockouts are pre-punched, removable sections that allow easier wiring and conduit entry, streamlining the installation process. This makes NEMA 12K enclosures particularly useful in industrial and commercial settings where frequent modifications or expansions are necessary.
Like NEMA 12 enclosures, NEMA 12K enclosures protect against dust, falling dirt, and dripping non-corrosive liquids. Knockouts do not compromise the enclosure’s integrity or protective capabilities.
NEMA 13: Oil and Coolant Protection
NEMA 13 enclosures provide robust protection against oil, coolant seepage, and other non-corrosive liquids, in addition to dust and dirt. These enclosures are ideal for environments such as:
- Machine shops
- Power generation facilities
- Textile mills
NEMA 13 enclosures are useful in any facility where machinery and equipment may be exposed to lubricants and coolants. The design of NEMA 13 enclosures ensures that these substances do not penetrate the enclosure, protecting the electrical components inside from damage and ensuring continued operation.
![outdoor electrical enclosure](https://media.electricalpowerandcontrol.com/wp-content/uploads/2024/06/05192242/outdoor-electrical-enclosure-rotated.jpg)
NEMA Ratings for Outdoor Enclosures
NEMA 3: Basic Outdoor Protection
NEMA 3 enclosures provide basic protection for outdoor environments, safeguarding electrical equipment against rain, sleet, snow, and windblown dust. They are designed to prevent water and debris from entering the enclosure, ensuring that the equipment inside remains functional and safe.
NEMA 3 enclosures are commonly used in residential, commercial, and light industrial applications where environmental conditions are not excessively harsh. They can be found protecting electrical components like circuit breakers, control panels, and other critical equipment exposed to the elements.
While NEMA 3 enclosures offer protection for many outdoor settings, they may not be suitable for environments with more severe conditions.
NEMA 3R: Water Accumulation Protection
NEMA 3R enclosures provide enhanced protection against water accumulation, making them suitable for outdoor environments where rain and melting snow could accumulate. These enclosures prevent water ingress, keeping electrical equipment dry and operational.
In addition to protecting against rain and sleet, NEMA 3R enclosures offer basic protection against windblown dust and falling dirt. This makes them a versatile choice for a variety of outdoor applications, including:
- Utility boxes
- Lighting controls
- Other electrical systems exposed to the elements
One of the key advantages of NEMA 3R enclosures is their ability to be used indoors too, offering extra protection in indoor environments prone to water exposure.
NEMA 3S: Operate With Ice
NEMA 3S enclosures are designed to continue to operate in conditions where ice formation is a concern. These enclosures provide the same protection against rain, sleet, snow, and windblown dust as NEMA 3 enclosures. They also ensure that external mechanisms remain functional when ice forms on the enclosure. This makes NEMA 3S enclosures ideal for outdoor environments in colder climates where ice and freezing temperatures are common.
Applications include:
- Utility boxes
- Telecommunications equipment
- Traffic signal controls
NEMA 3X: Corrosion Protection
NEMA 3X enclosures provide basic outdoor protection with the added benefit of corrosion protection. These enclosures protect electrical equipment from rain, sleet, snow, and windblown dust, while also resisting corrosion caused by harsh environmental conditions such as salt spray and chemicals.
This makes NEMA 3X enclosures an excellent choice for coastal areas, industrial sites, and other corrosive environments. The corrosion-resistant materials used in NEMA 3X enclosures help ensure the electrical components remain reliable and have a long life span.
NEMA 4: Strong Outdoor Protection
NEMA 4 enclosures offer strong outdoor protection to safeguard electrical equipment against many environmental hazards.
These enclosures are built to protect against rain, sleet, snow, windblown dust, and even direct water spray from hoses, making them suitable for washdown environments and other demanding outdoor settings.
NEMA 4 enclosures are commonly used in industrial applications, outdoor control panels, and equipment that requires robust protection against harsh conditions.
NEMA 4X: Enhanced Corrosion Protection
NEMA 4X enclosures provide all the robust outdoor protection of NEMA 4 enclosures, with the added benefit of enhanced corrosion resistance. These enclosures are designed to withstand corrosive environments, such as those found in marine, coastal, and certain industrial applications.
Constructed from materials like stainless steel or non-metallic substances, NEMA 4X enclosures protect against rain, sleet, snow, windblown dust, and direct water spray, while also resisting corrosion from salt spray and chemicals.
This makes them ideal for use in:
- Water treatment facilities
- Washdown areas
- Chemical plants
NEMA 6: High Water Protection
NEMA 6 enclosures offer high water protection, making them suitable for environments where equipment might be exposed to temporary submersion. These enclosures are designed to protect against the ingress of water under specific test conditions, ensuring that electrical components remain dry and operational.
NEMA 6 enclosures are commonly used in applications such as outdoor junction boxes, marine environments, and areas prone to flooding. They provide robust protection not only against rain, sleet, and snow but also against temporary submersion in water.
NEMA 6P: Submersion Protection
NEMA 6P enclosures provide superior protection against prolonged submersion in water, making them ideal for extreme environments. These enclosures are designed to withstand continuous exposure to water under specified conditions without compromising the integrity of the electrical components inside.
NEMA 6P enclosures are commonly used in applications such as:
- Underwater installations
- Marine environments
- Areas with high flood risks
In addition to protection against submersion, they also guard against dust, dirt, and external ice formation.
![enclosure for electrical equipment](https://media.electricalpowerandcontrol.com/wp-content/uploads/2024/06/05192311/enclosure-for-electrical-equipment-rotated.jpg)
Choosing the Right NEMA-Rated Enclosure
Understanding NEMA ratings is essential for selecting the right electrical enclosure to protect your equipment, whether indoors or outdoors. NEMA ratings define the environmental conditions an enclosure can withstand.
- Indoor enclosures (NEMA 1, NEMA 2, NEMA 5, etc.) shield equipment from dust, dirt, and occasional liquid exposure.
- Outdoor enclosures (NEMA 3, NEMA 3R, NEMA 4, etc.) provide protection against rain, snow, sleet, and windblown dust, with some offering additional features like corrosion resistance (NEMA 3X, NEMA 4X) or submersion protection (NEMA 6P).
It’s important to note that outdoor enclosures can also be used indoors, providing an extra layer of protection.
Selecting the appropriate NEMA rating ensures your equipment functions safely and reliably for years to come. By understanding the environment and its hazards, you can choose the right enclosure for your needs.
