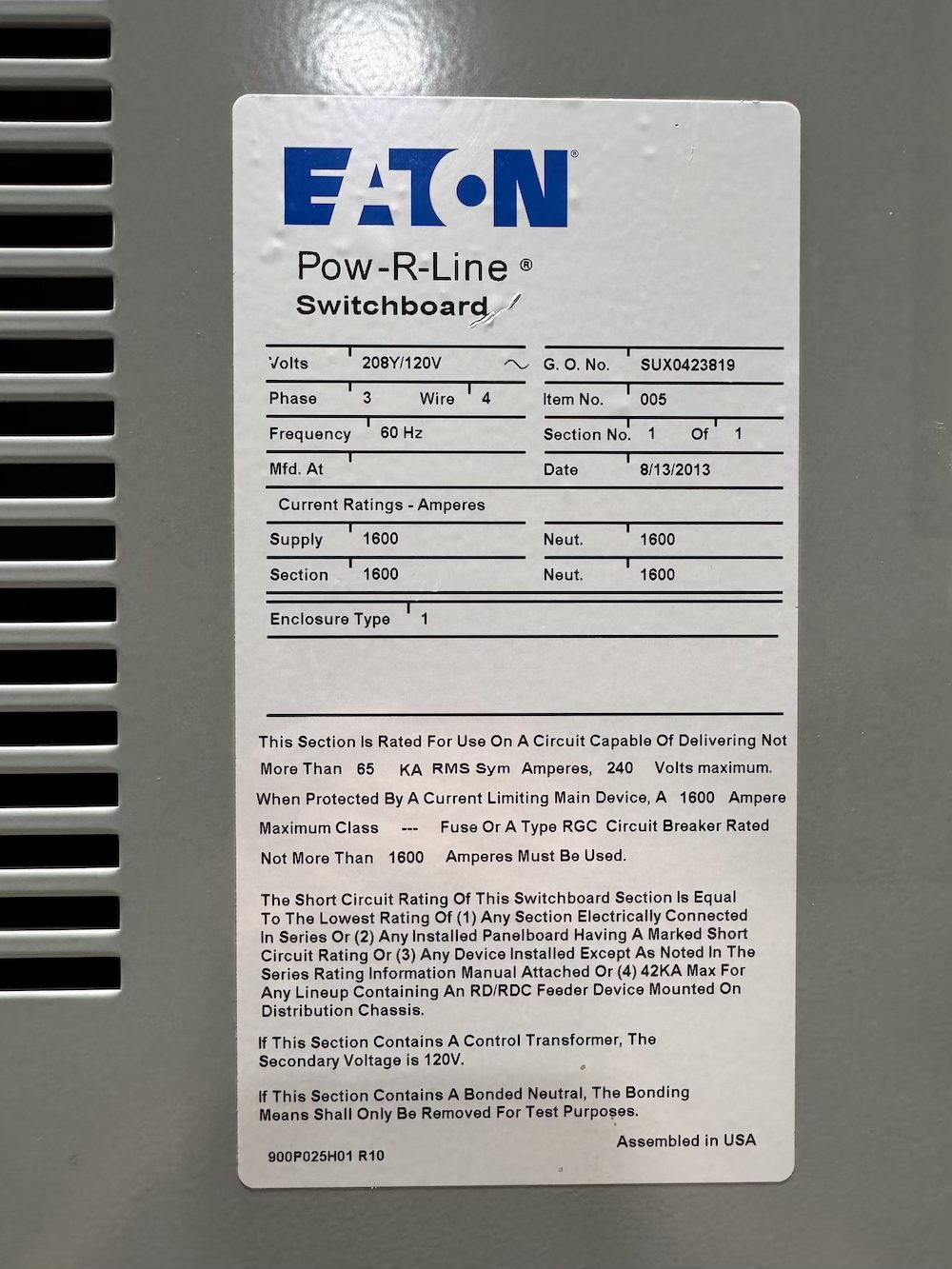

Description
-
Eaton
-
Type PRL4
-
3 Phase
-
4 Wire (Neutral Installed)
-
1600 Amp
-
208Y/120 Vac
-
NEMA 1 – (Indoor)
-
Pow-R-Line
-
Switchboard / Distribution / Panel
-
Bottom/Top-Fed = Top
-
Connection = Main Breaker
-
DIMENSIONS:
-
Height = 90 in
-
Width = 45 in
-
Depth = 30 in
-
-

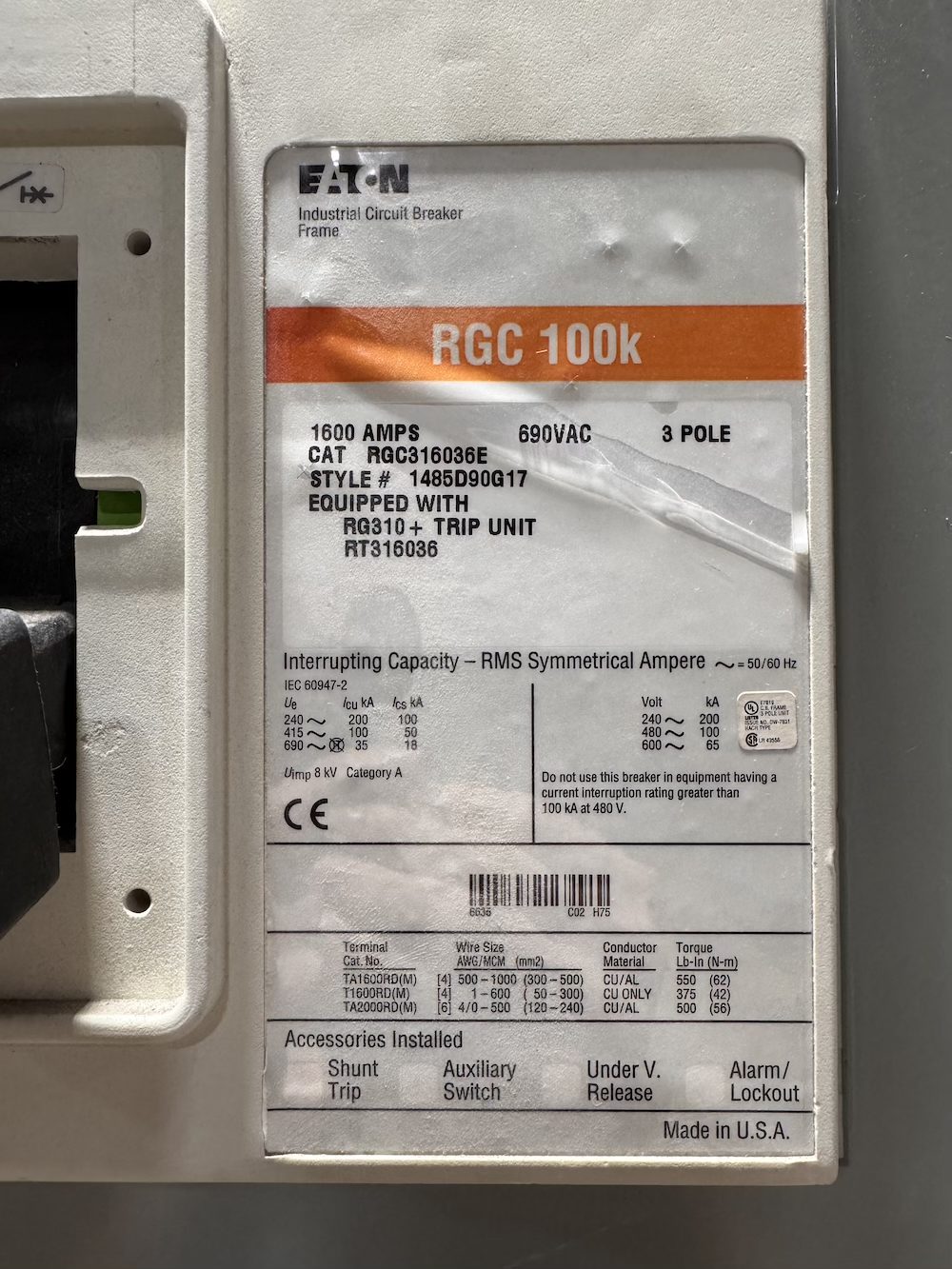

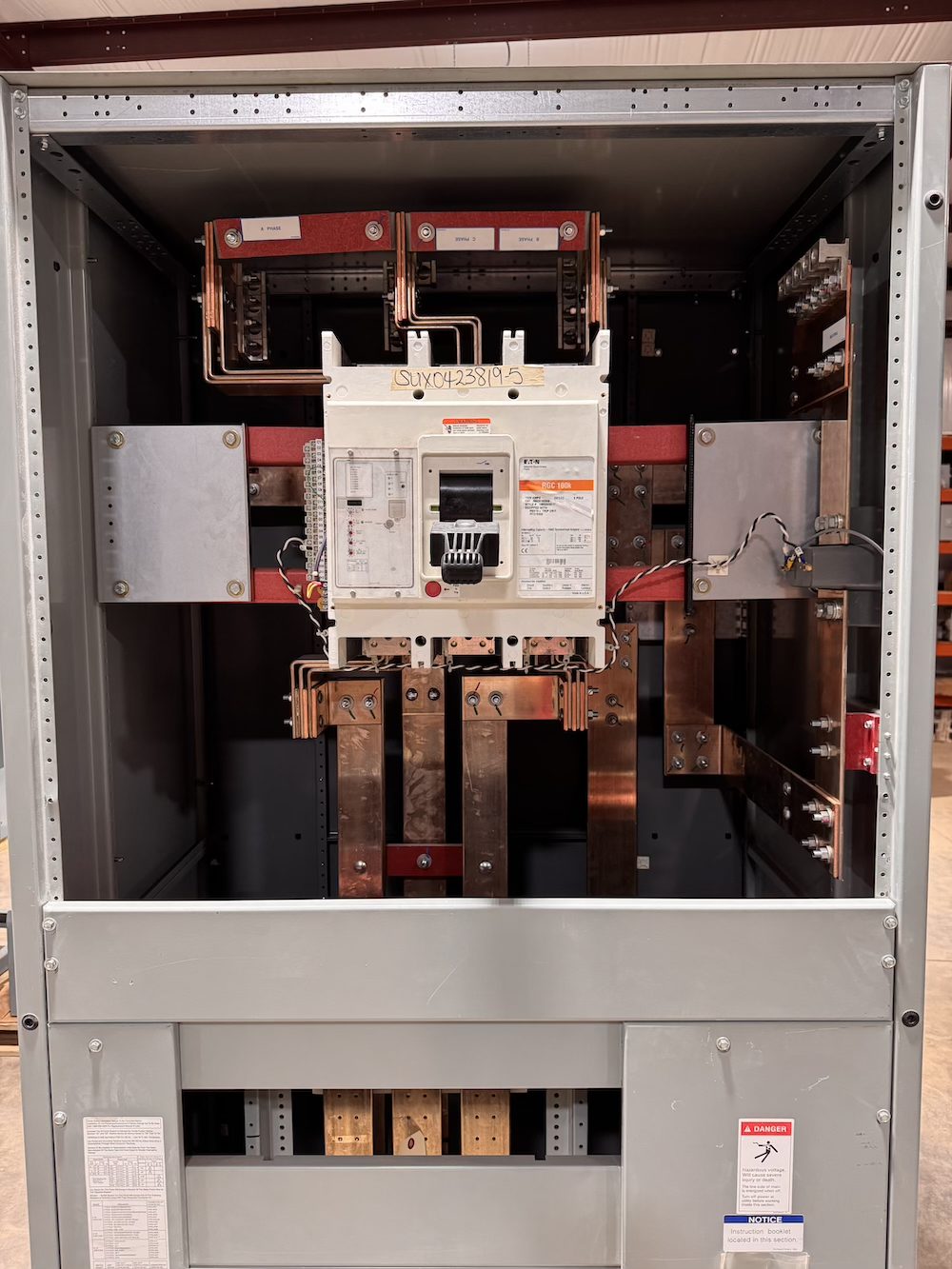

MAIN BREAKER:
-
Type = RGC-Frame
-
CAT# = RGC316036E
-
Amperage = 1600 Amp
-
AIC Rated = 200kA @ 240V
-

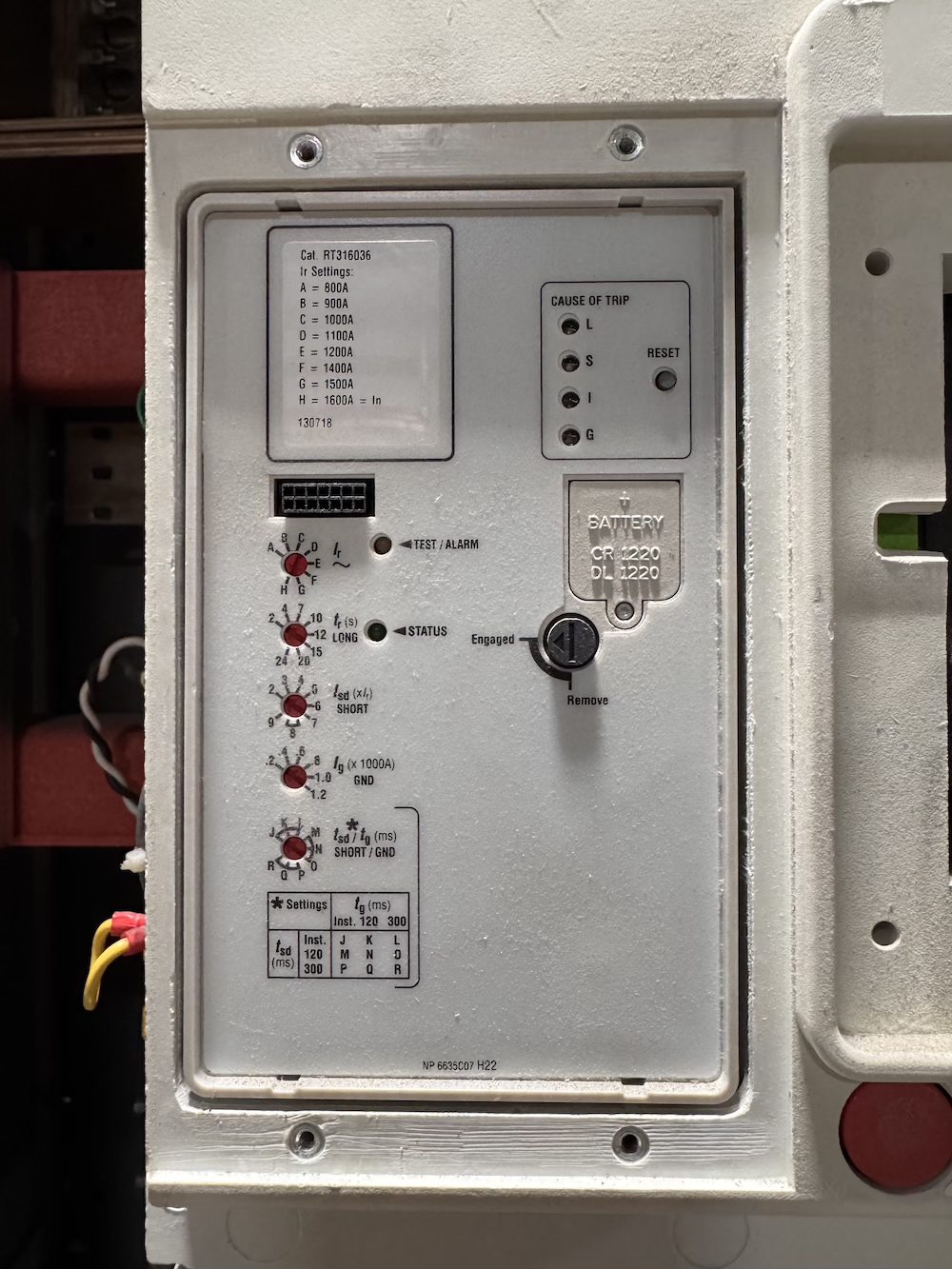

Trip Unit Type = RG310+ TRIP UNIT RT316036
-
Trip Unit Functions = LSIG
-
Long Time, Short Time, Instantaneous, and Ground Fault
-
-
Breaker Mount = Bolt-On/Fixed
-
Condition = RECON
-
ACCESSORIES:
-
N/A (can be installed upon request: Shunt Trip, UV, Aux, etc.)
-
-
-

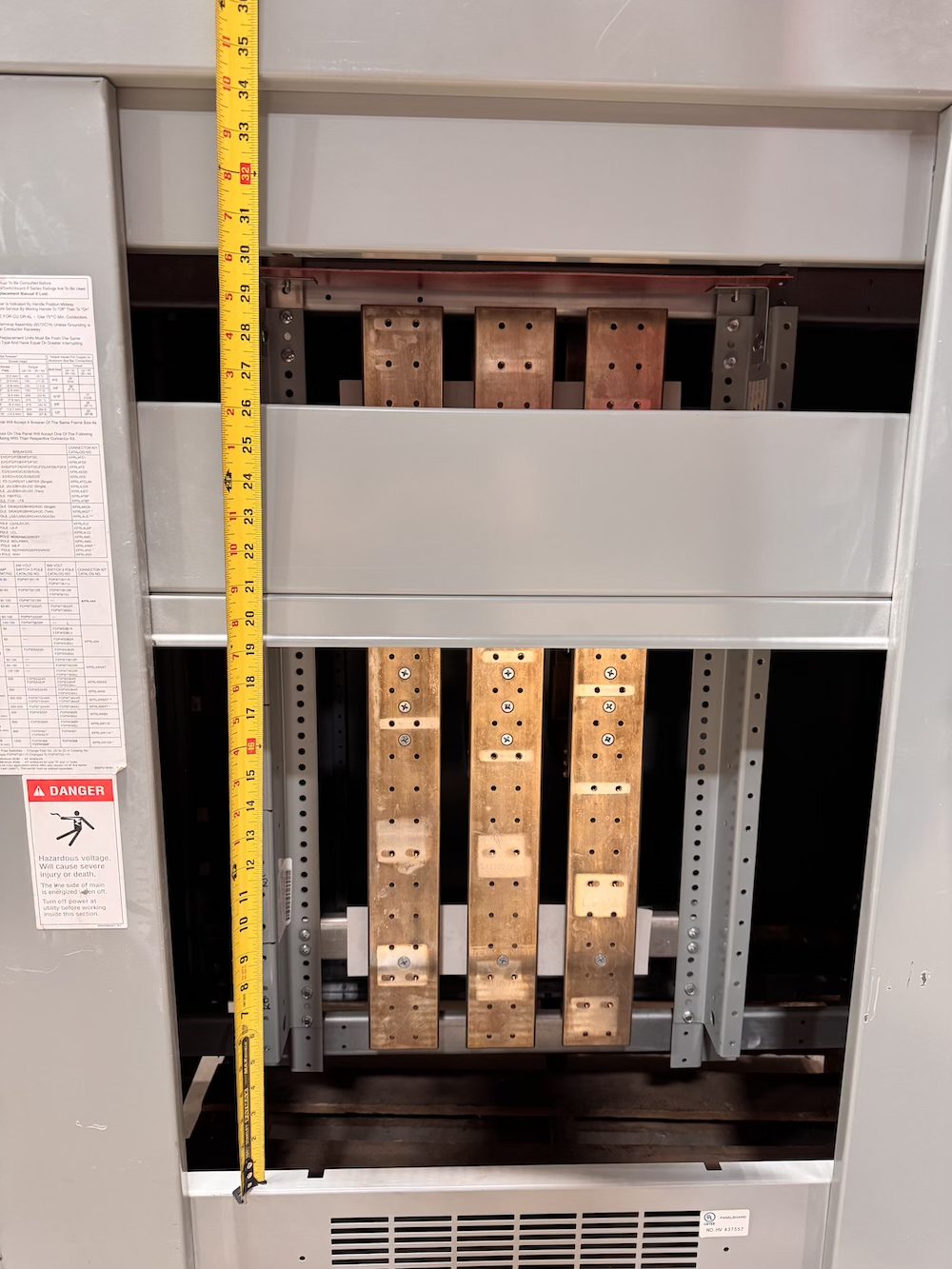

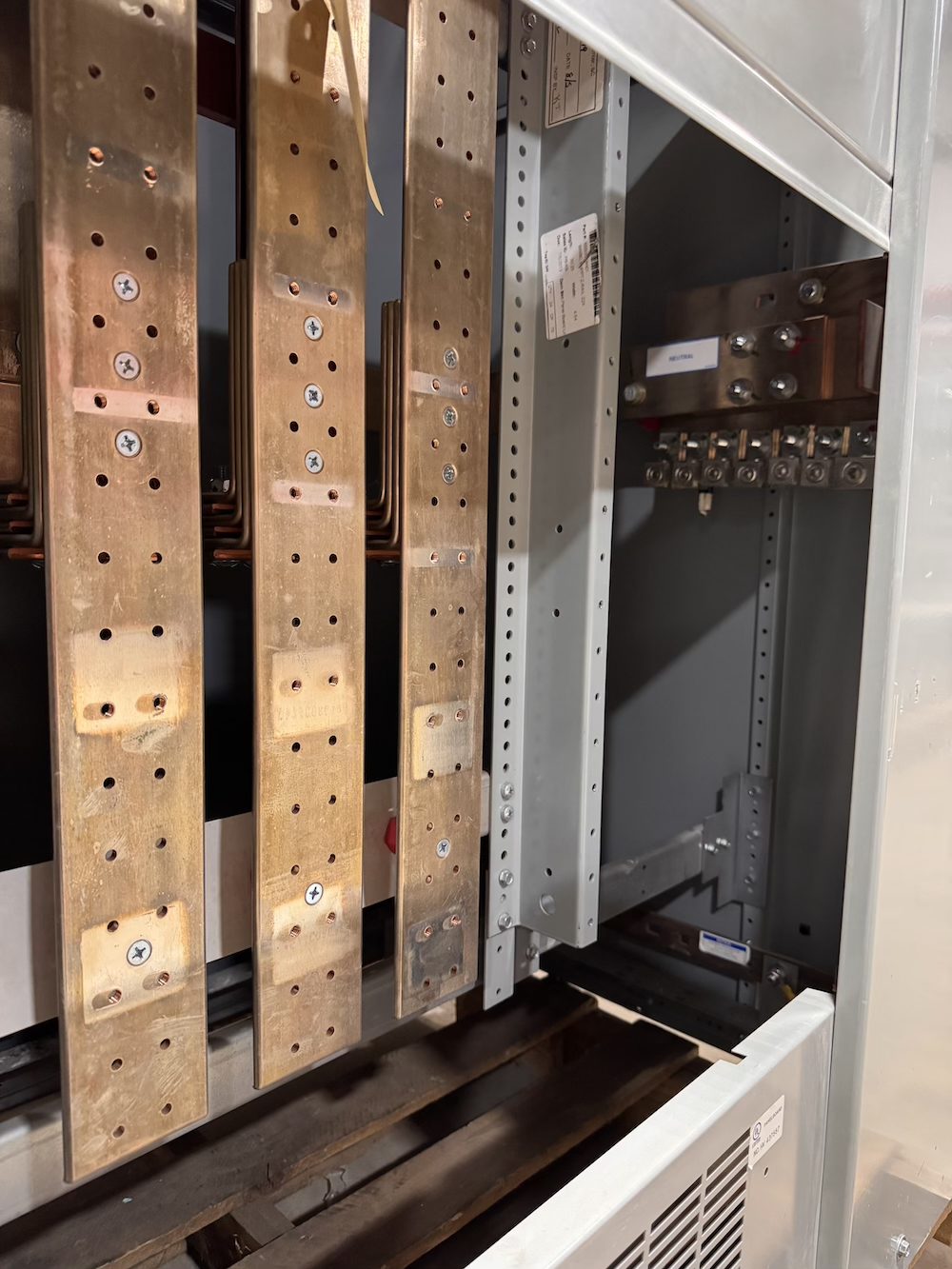

INTERIOR:
-
Type = PRL4
-
Max Feeder = ND-/HND-Frame (1200A)
-
Mounting Inches = ~30 in
-
-
-
INSTALLED BREAKERS:
-
N/A (breakers and blanks can be installed upon request)
-
-
-

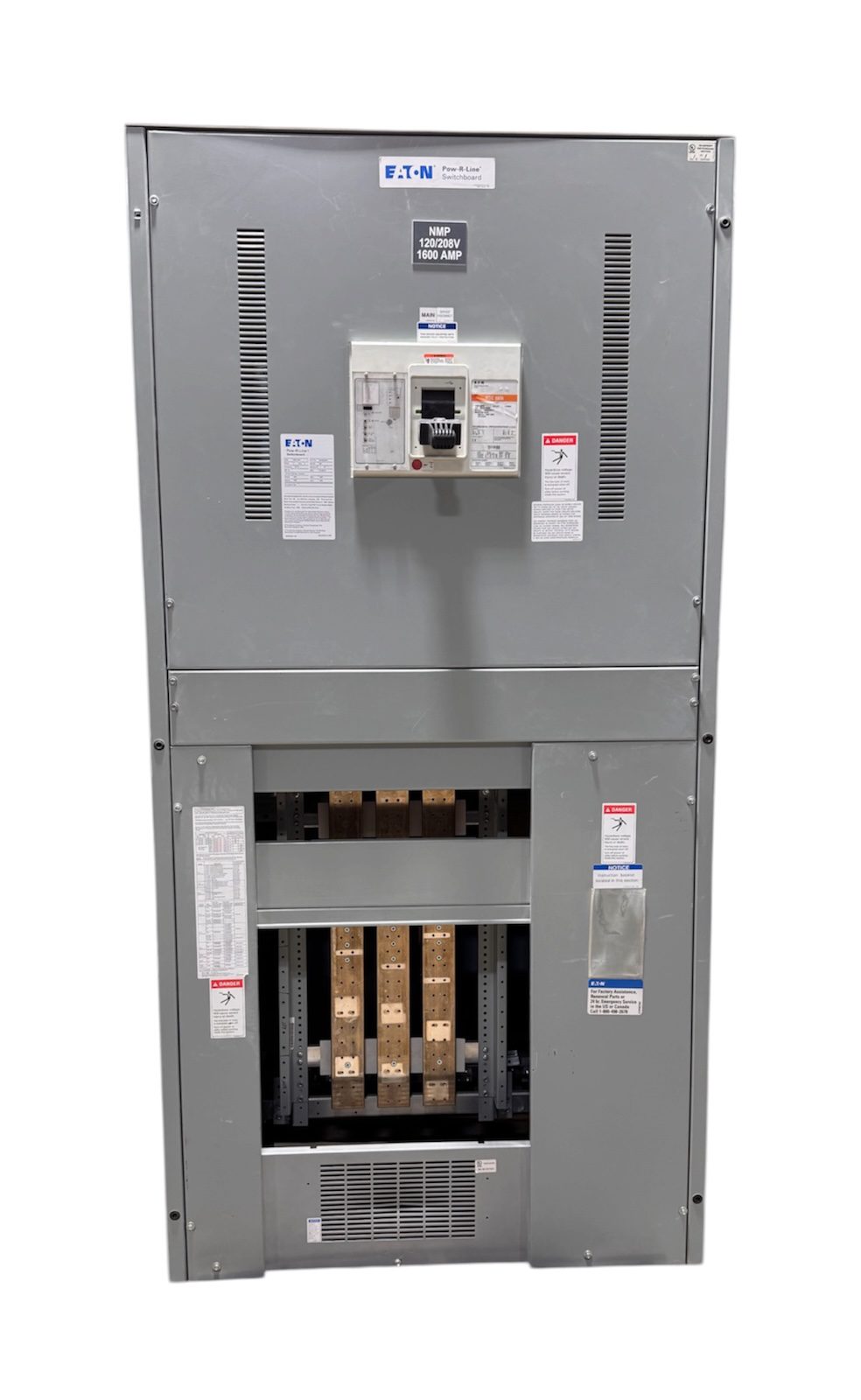

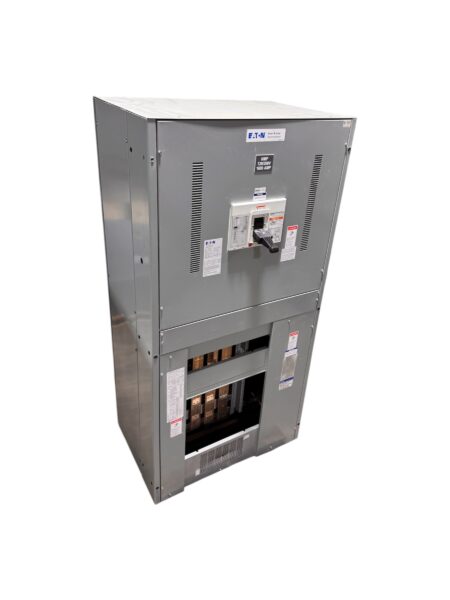

(Appearance May Vary From Photo)
-
For Freight Rates Please Contact Seller
-
One Year Warranty
-
24 Hour Emergency Service
D26 ()
LS-25040
