Description
-

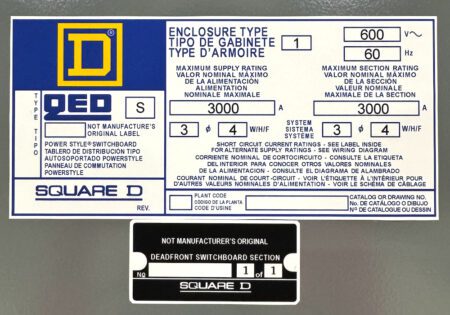

Square D
-
Type QED
-
3 Phase
-
4 Wire (Neutral Installed)
-
3000 Amp
-
600 Vac MAX
-
(can use on 480/277, 208/120, 240, 480V systems)
-
-
NEMA 1 – (Indoor)
-
Distribution / Panelboard / Panel
-

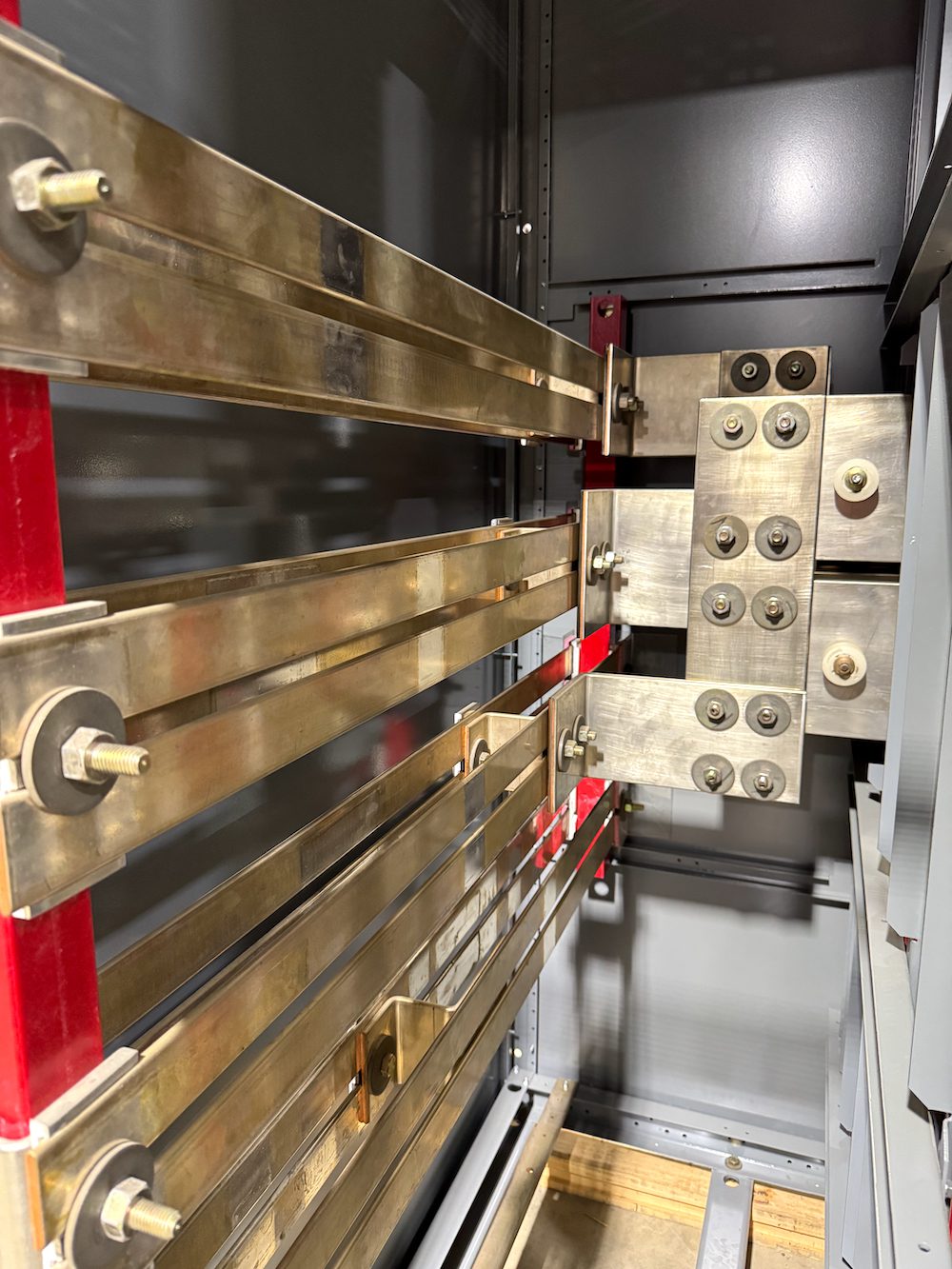

Connection = Pass-Through Bus
-
Max Feeder = L-/P-/M-Frame (1200A)
-
Double-Row – (75 CIRCUIT)
-
INSTALLED BREAKERS:
-
N/A (breakers and blanks can be installed upon request)
-
-
ADDONS:
-
(4) H. VIR (High Vision InfraRed Inspection Window)
-
(The following can be installed upon request: ERMS (Arc Fault Reduction), Power Metering, Surge Protection (SPD/TVSS), etc.)
-
-
SECTION DIMENSIONS:
-
WIDTH = 54 in
-
HEIGHT = 92 in
-
DEPTH = 36 in
-
-

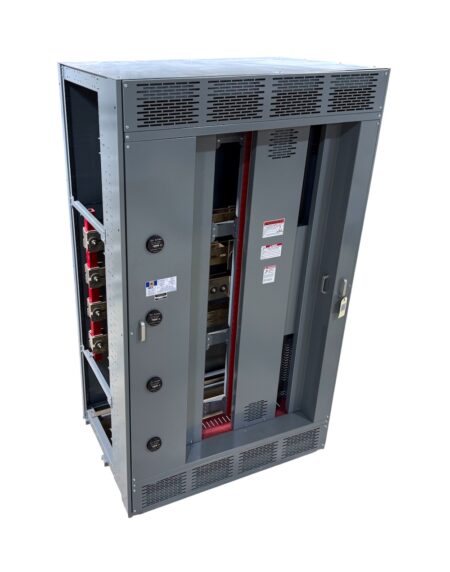

(Appearance May Vary From Photo)
-
