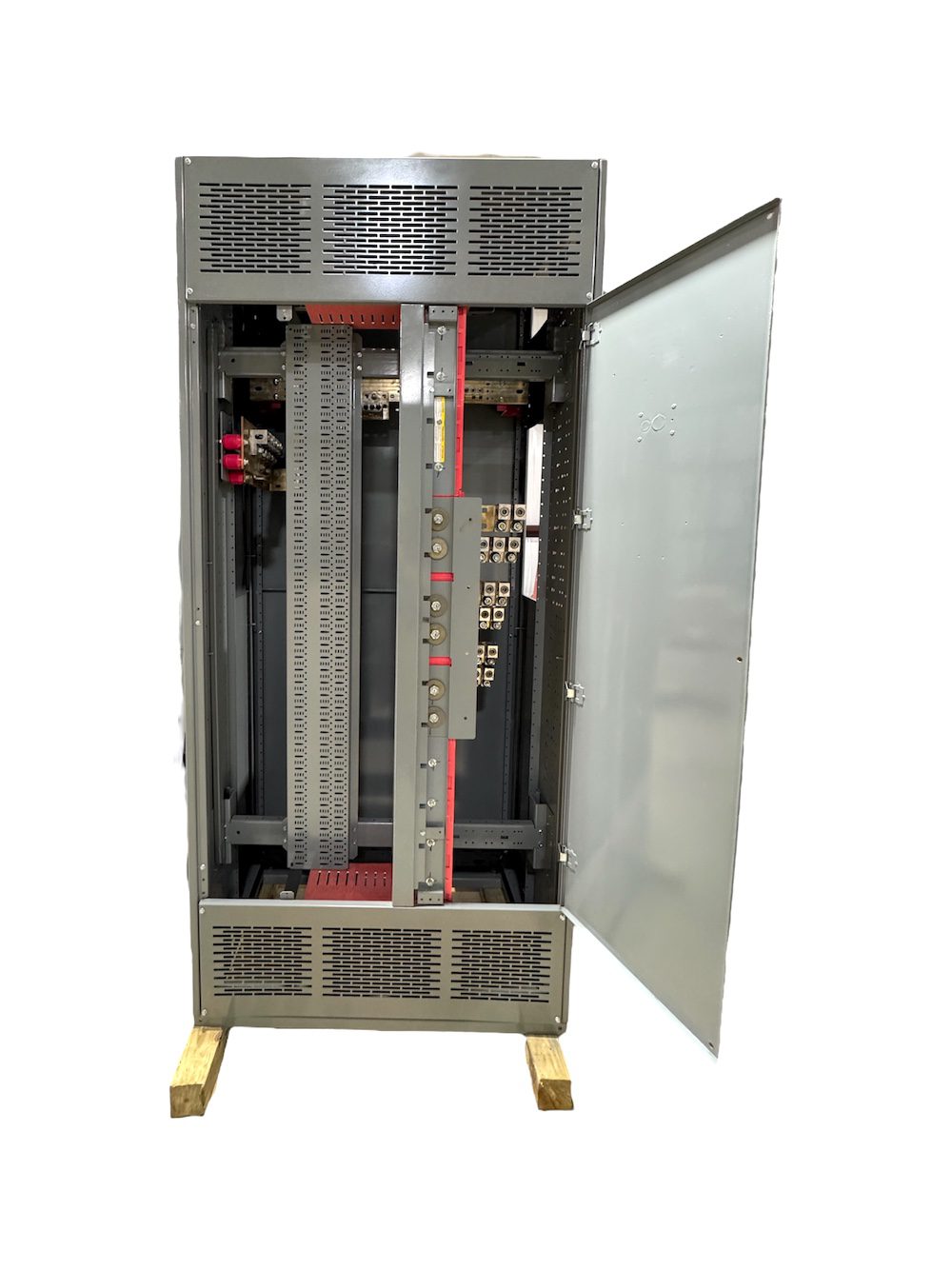

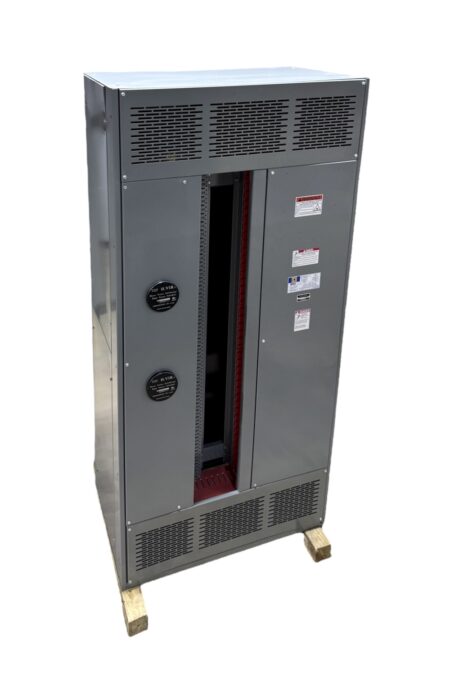

Description
-

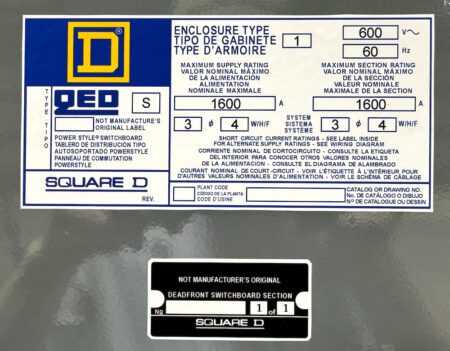

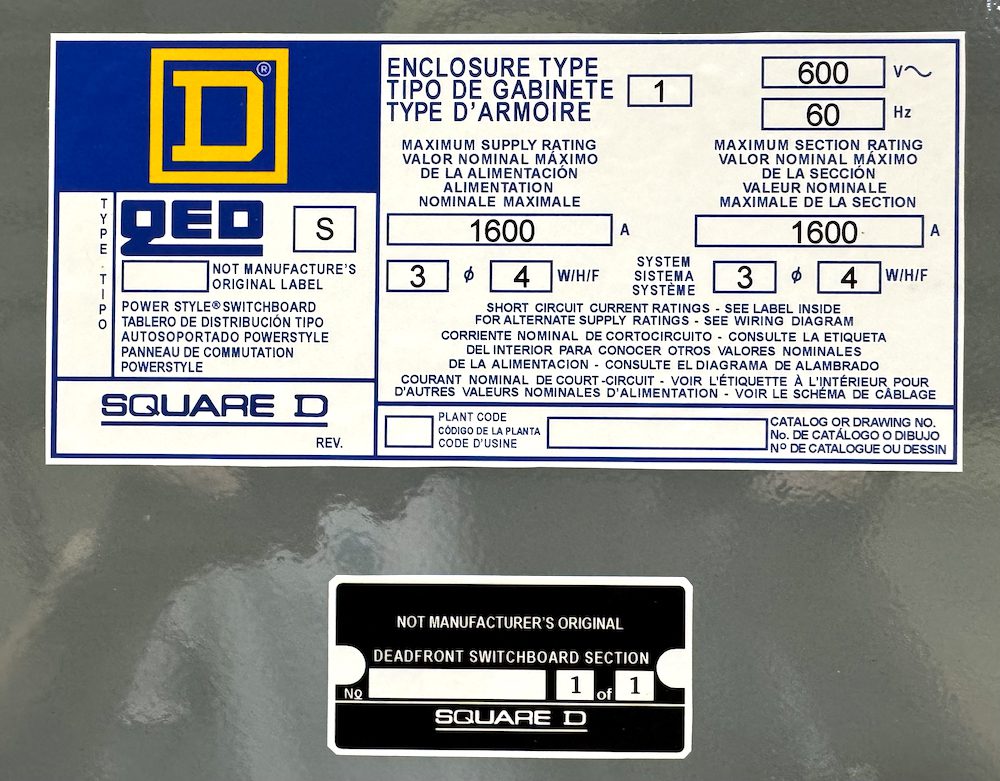

Square D
-
Type QED
-
3 Phase
-
4 Wire (Neutral Installed)
-
1600 Amp
-
600 Vac
-
NEMA 1 – (Indoor)
-
Bottom/Top-Fed = Either
-
Connection = Cable-In, Cable-Out
-
Connection = Main Lug
-
Max Feeder = L-/P-/M-Frame (1200A)
-
Single-Row = (42 CIRCUIT)
-
Distribution / Panelboard / Panel
-
ADDONS:
-

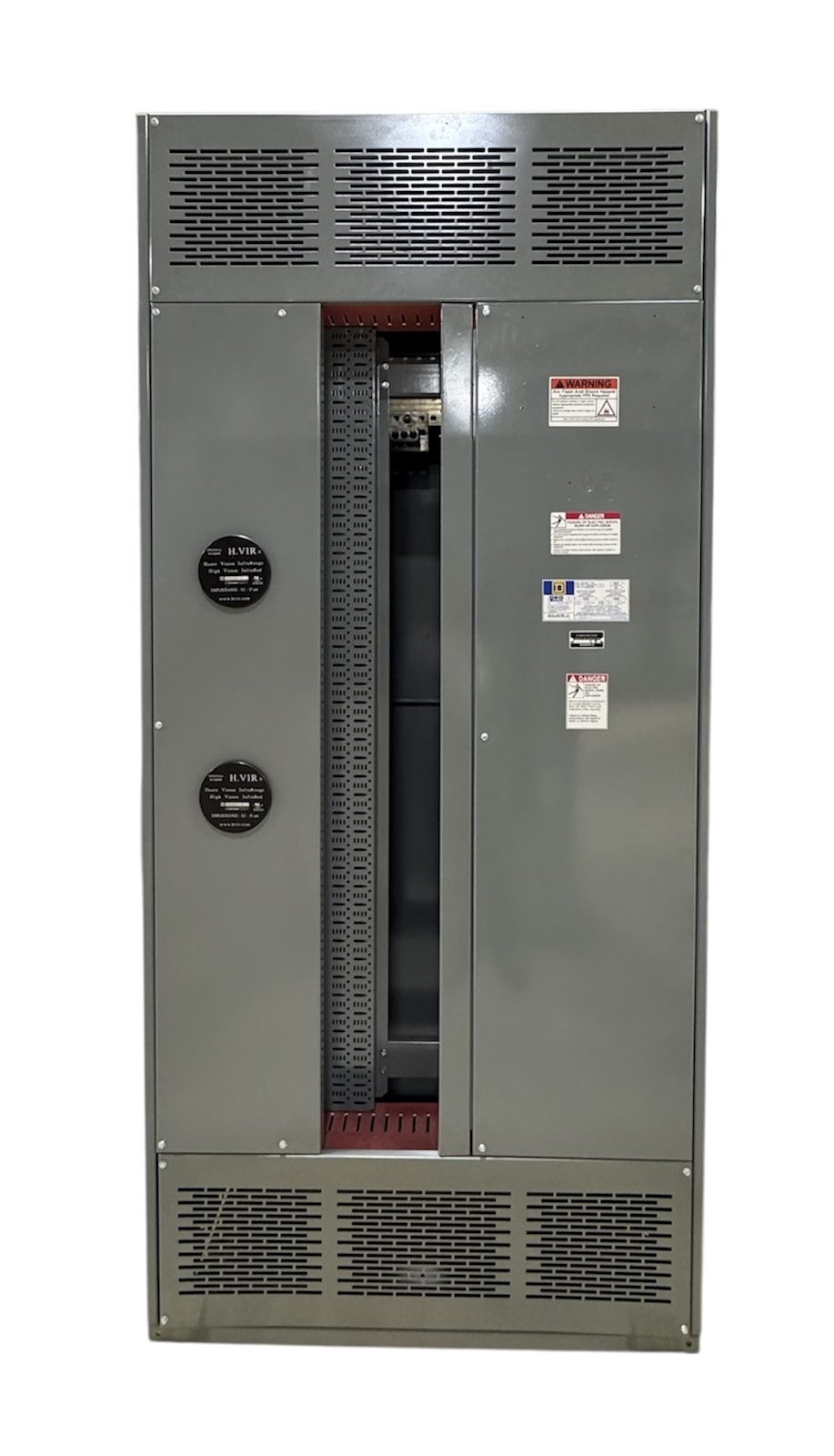

(2) H. VIR (High Vision InfraRed Inspection Window)
-
(The following can be installed upon request: Power Metering, Surge Protection (SPD/TVSS), etc.)
-
-
INCOMING CONNECTION:
-

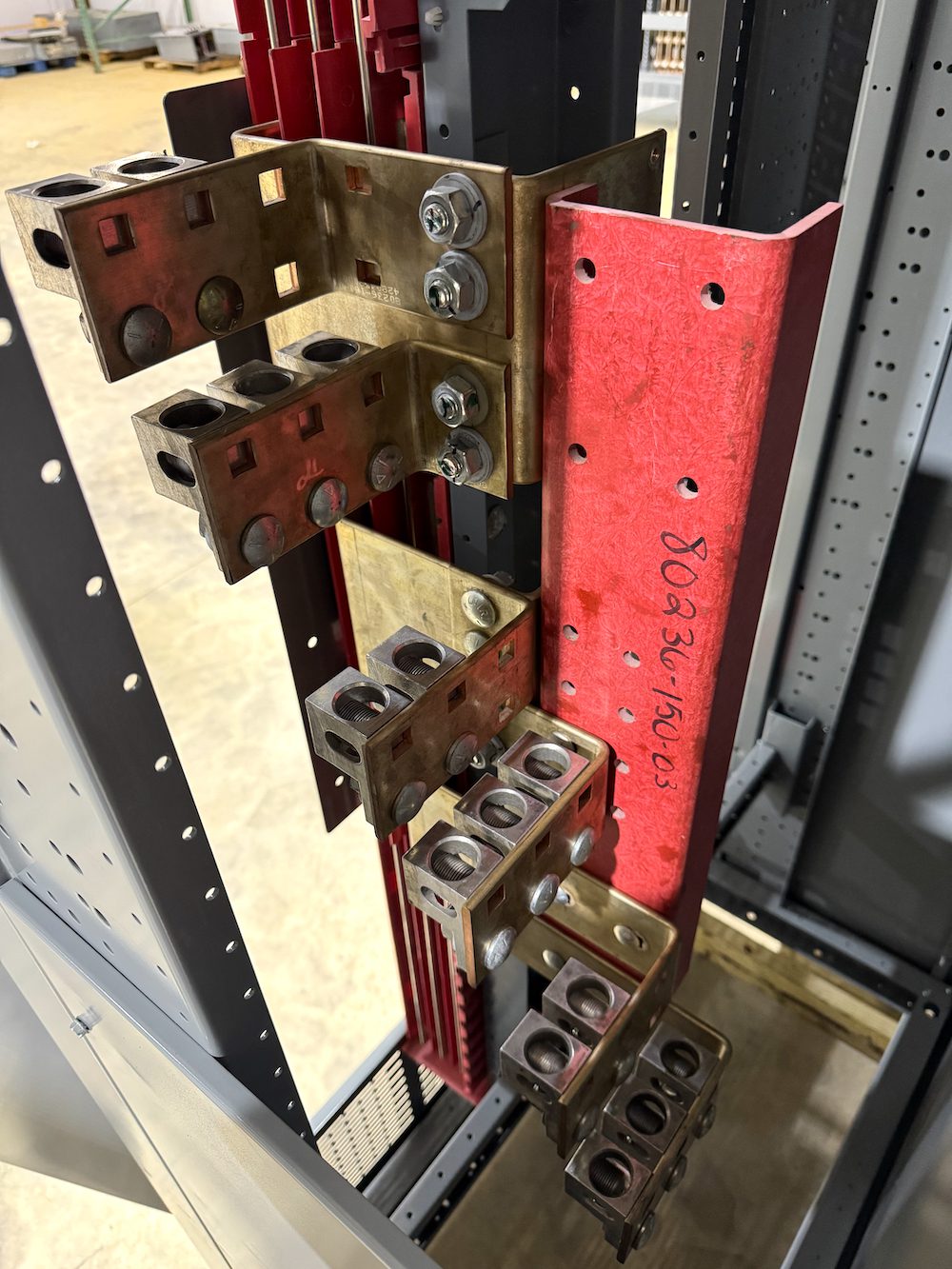

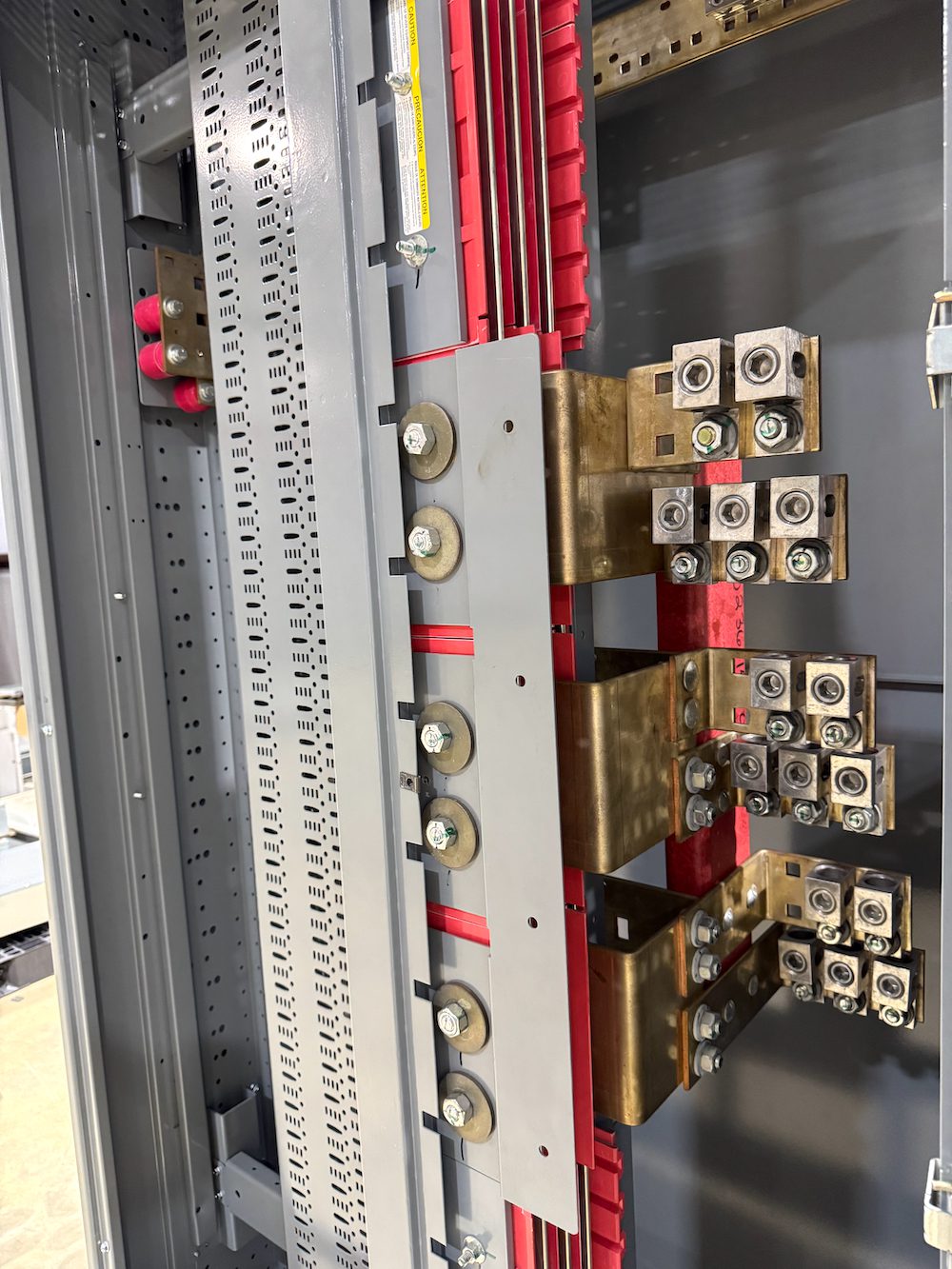

(5) 750 MCM – 1/0 (per phase + neutral)
-
-
INSTALLED BREAKERS:
-
N/A (breakers and blanks can be installed upon request)
-
-
DIMENSIONS:
-
WIDTH = 42 in
-
HEIGHT = 92 in
-
DEPTH = 24 in
-
-

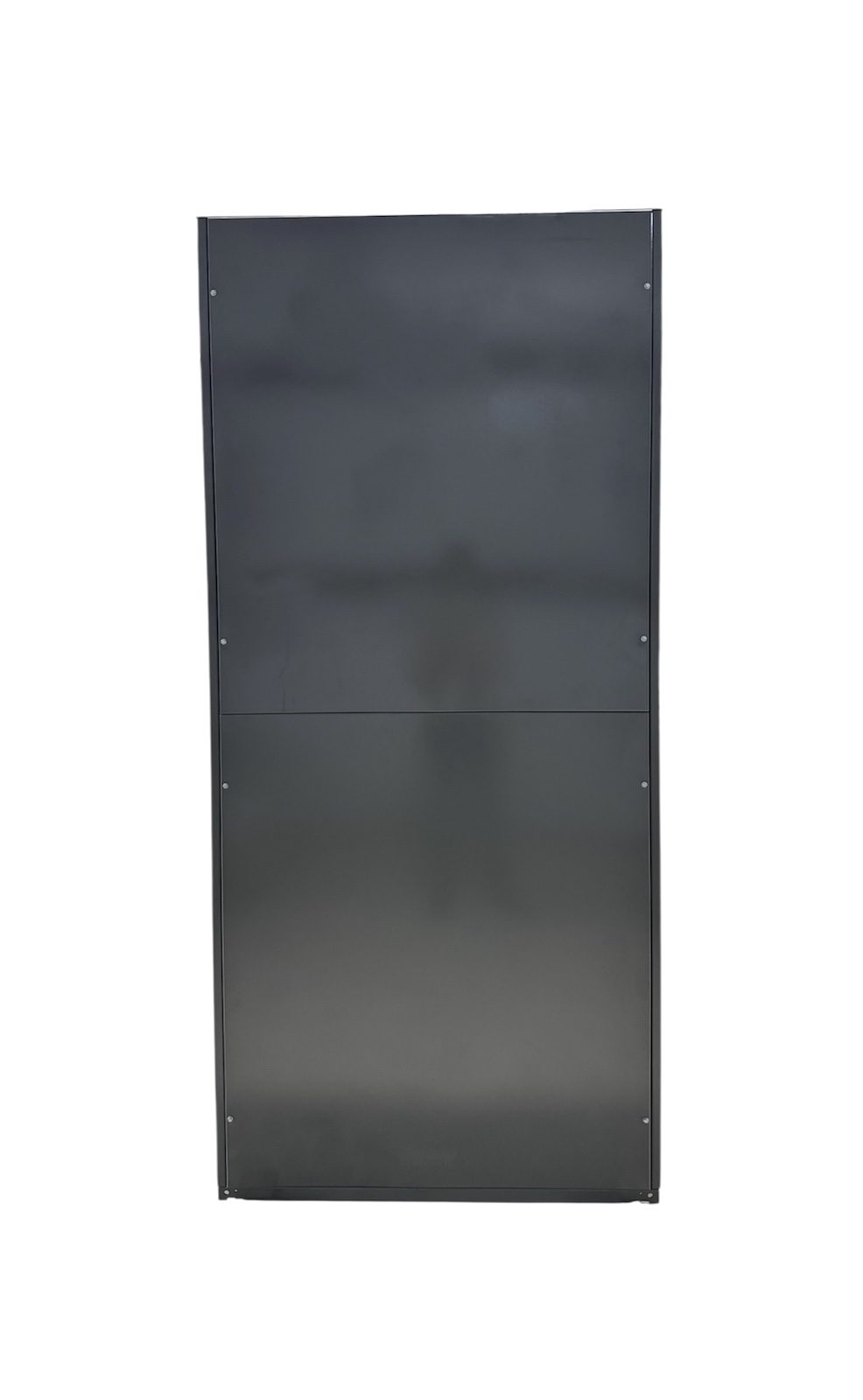

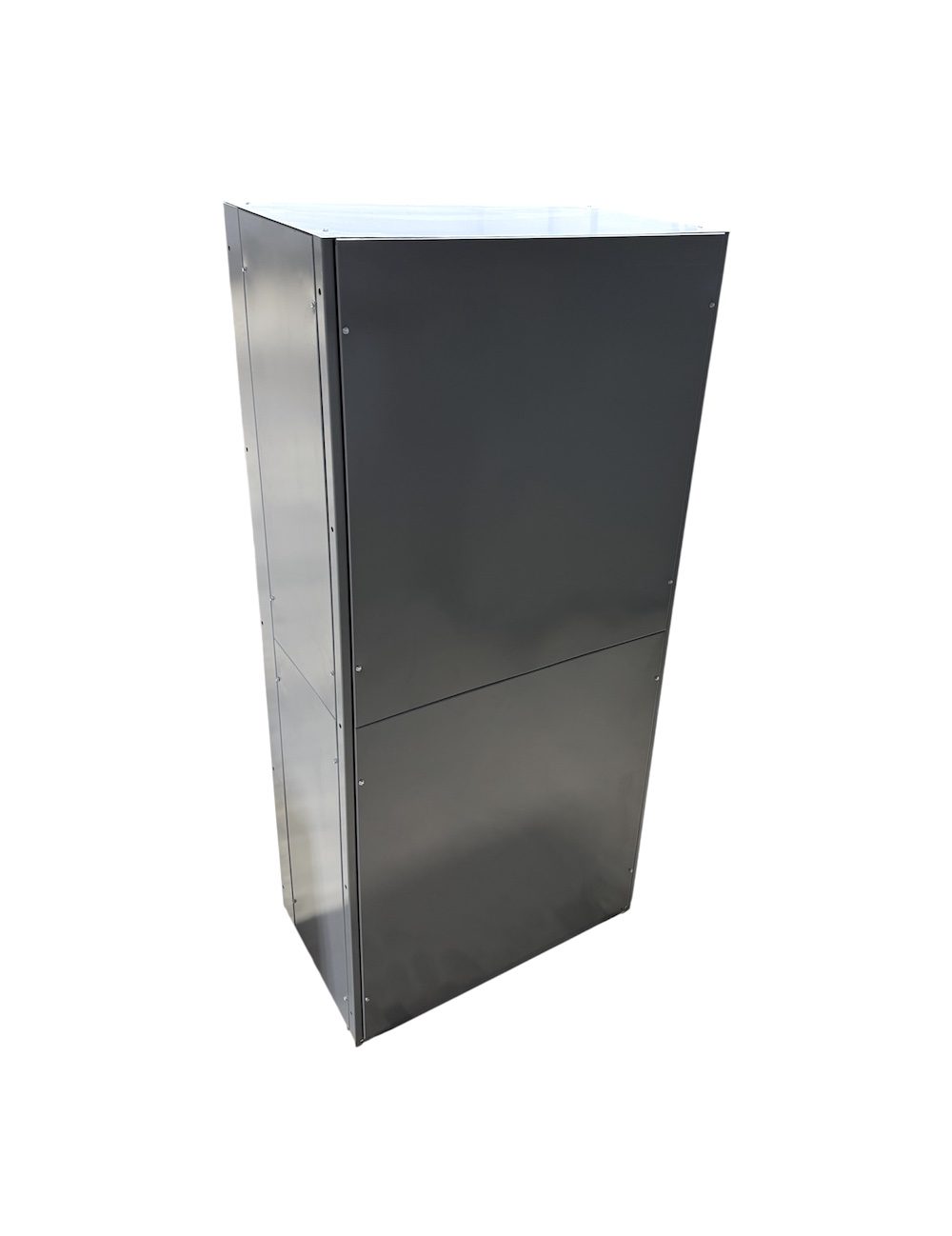

(Appearance May Vary From Photo)
-
For Freight Rates Please Contact Seller
-
One Year Warranty
-
24 Hour Emergency Service
