Description
-
Square D
-

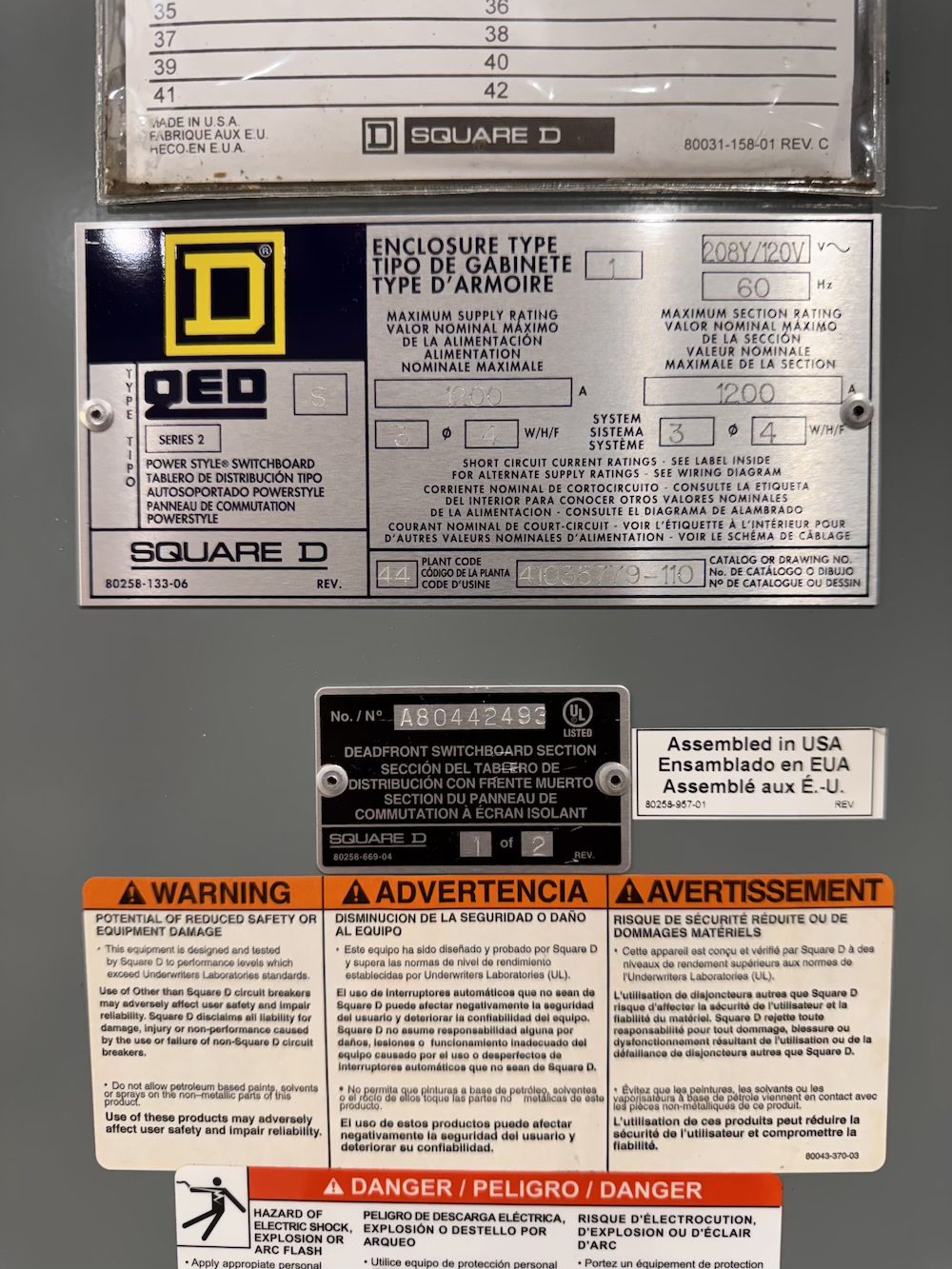

Type QED
-
3 Phase
-
4 Wire (Neutral Installed)
-
1200 Amp
-
208/120 Vac
-
NEMA 1 – (Indoor)
-
Switchgear / Panelboards / Panels
-

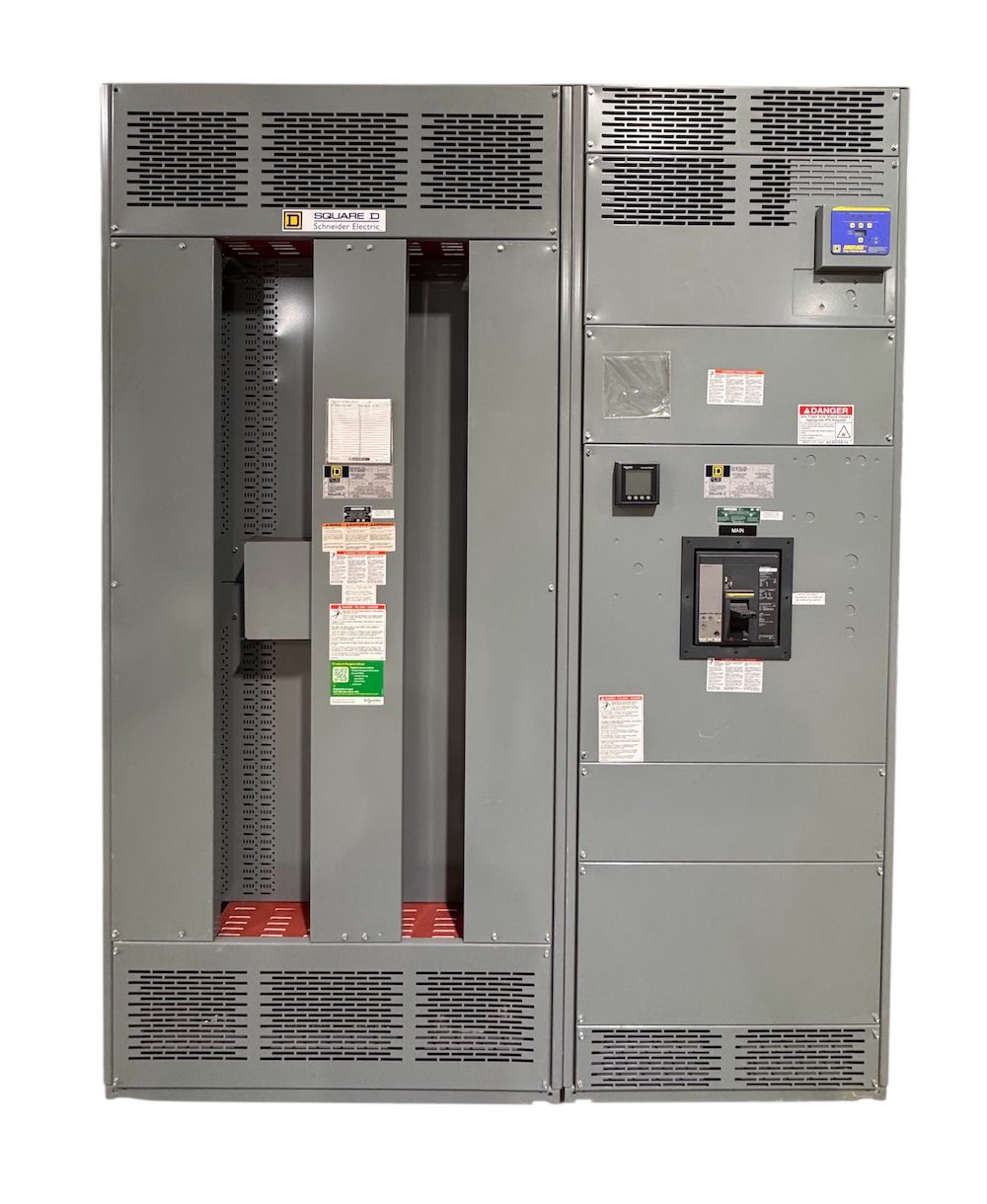

TOTAL COMBINED DIMENSIONS:
-
Height = 92 in
-
Width = 72 in
-
Depth = 24 in
-
-
MAIN BREAKER SECTION:
-
Bottom/Top-Fed = Bottom
-
Connection = Cable-In, Bus-Out
-
-
-

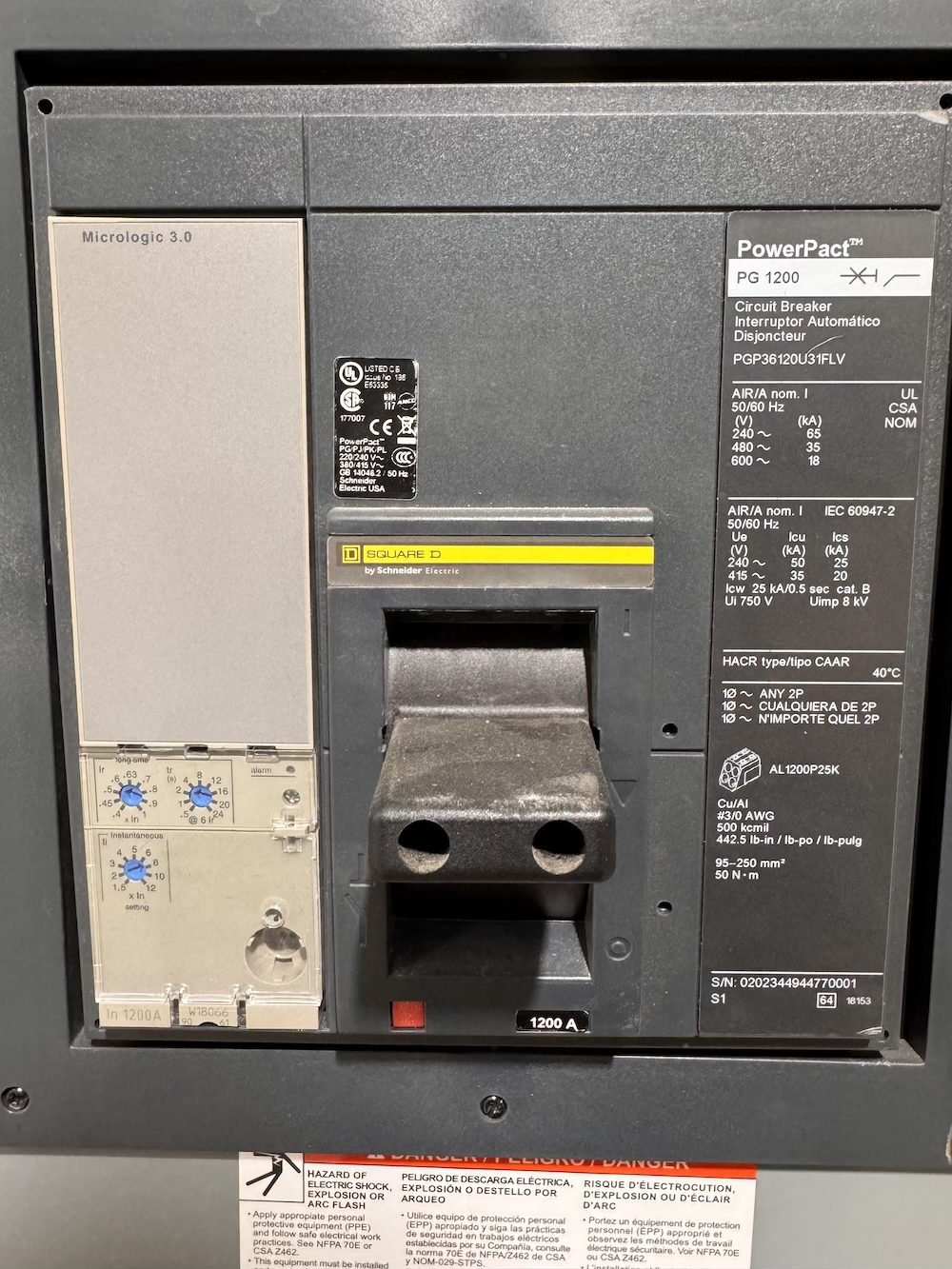

MAIN BREAKER:
-
Type = P-Frame, PowerPact
-
CAT# = PGP36120U31FLV*
-
* Swapped “F” Rating Plug for “A”
-
-
Amperage = 1200 Amp
-
AIC Rated = 65kA @ 240V
-
Trip Unit Type = Micrologic 3.0
-
Trip Unit Functions = LI
-
Long Time and Instantaneous
-
-
Breaker Mount = Bolt-On/Fixed
-
Condition = RECON w/ High Current Test Report
-
ACCESSORIES:
-
N/A (can be installed upon request: Shunt Trip, UV, Aux, etc.)
-
-
-
ADDONS:
-
SERVICE ENTRY RATED
-

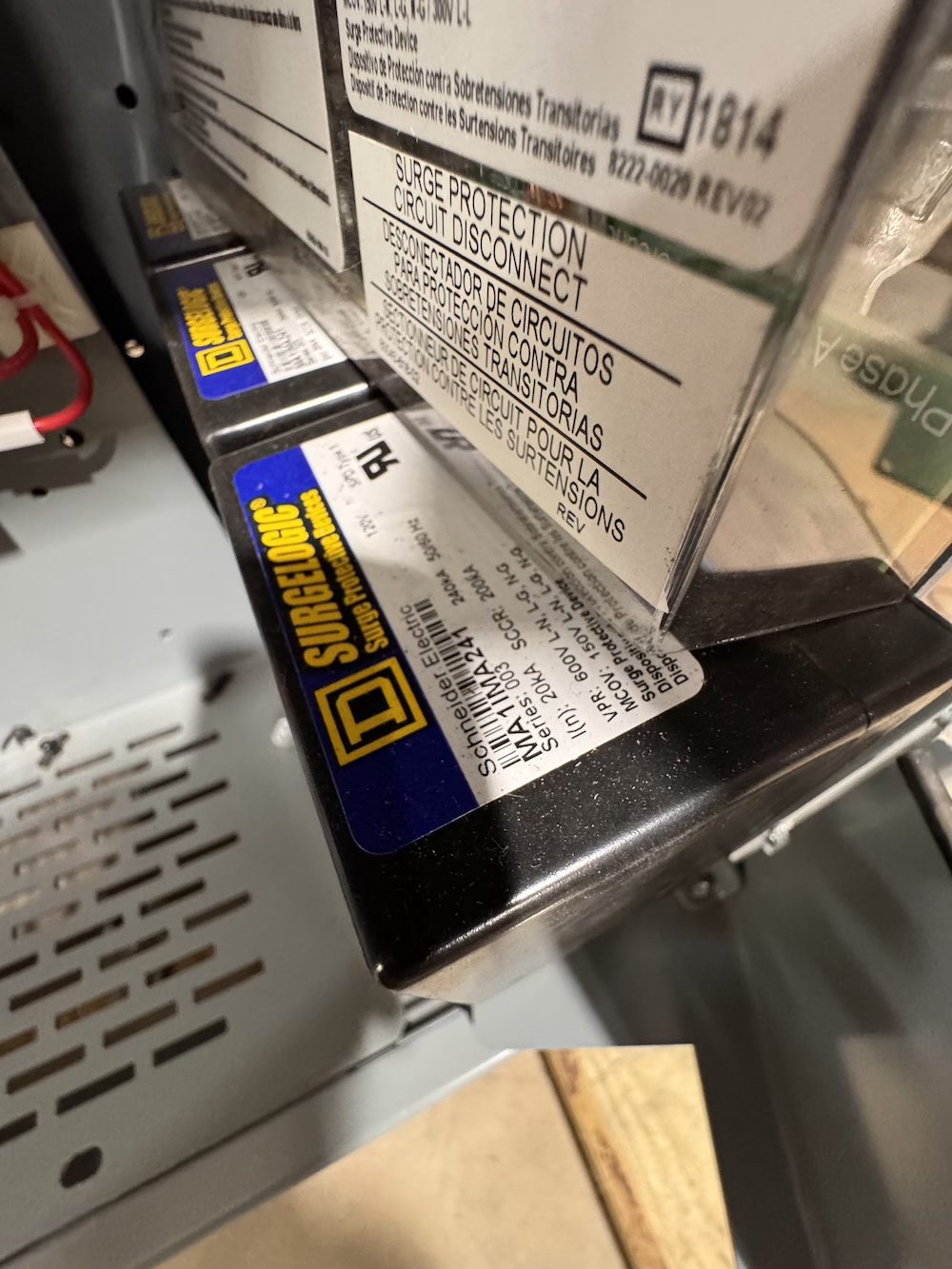

240kA SPD Installed (TVS2IMA24B21)
-

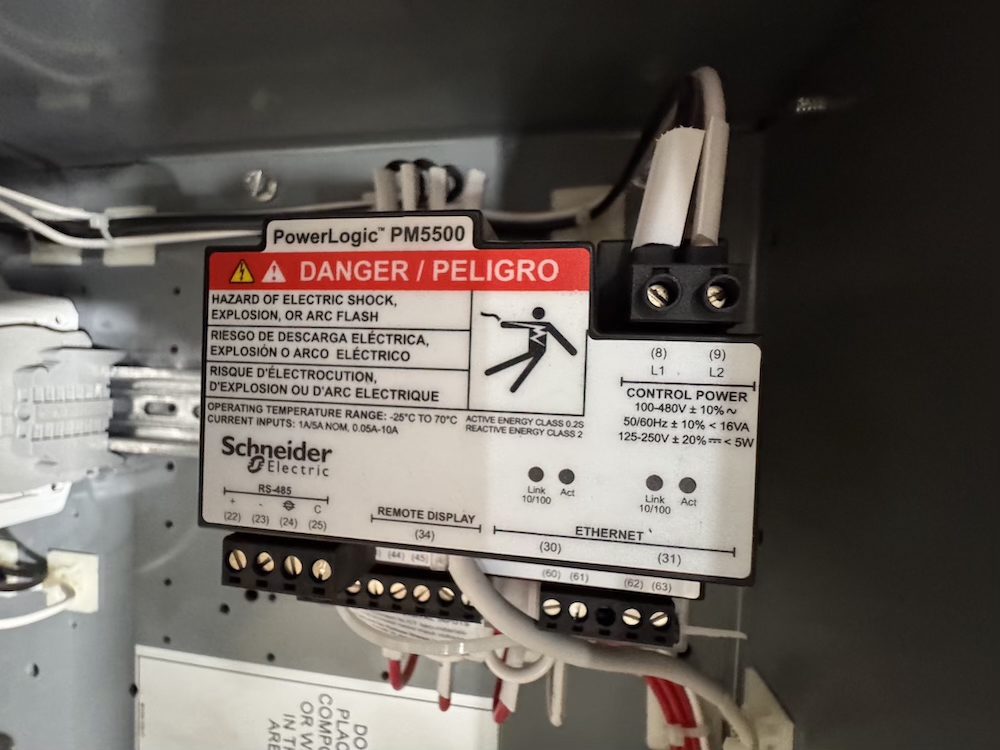

PM5500 Power Metering Installed (METSEPM5563)
-
(additional addons can be installed upon request)
-
-
SECTION DIMENSIONS:
-
WIDTH = 30 in
-
HEIGHT = 92 in
-
DEPTH = 24 in
-
-
-
DISTRIBUTION SECTION:
-

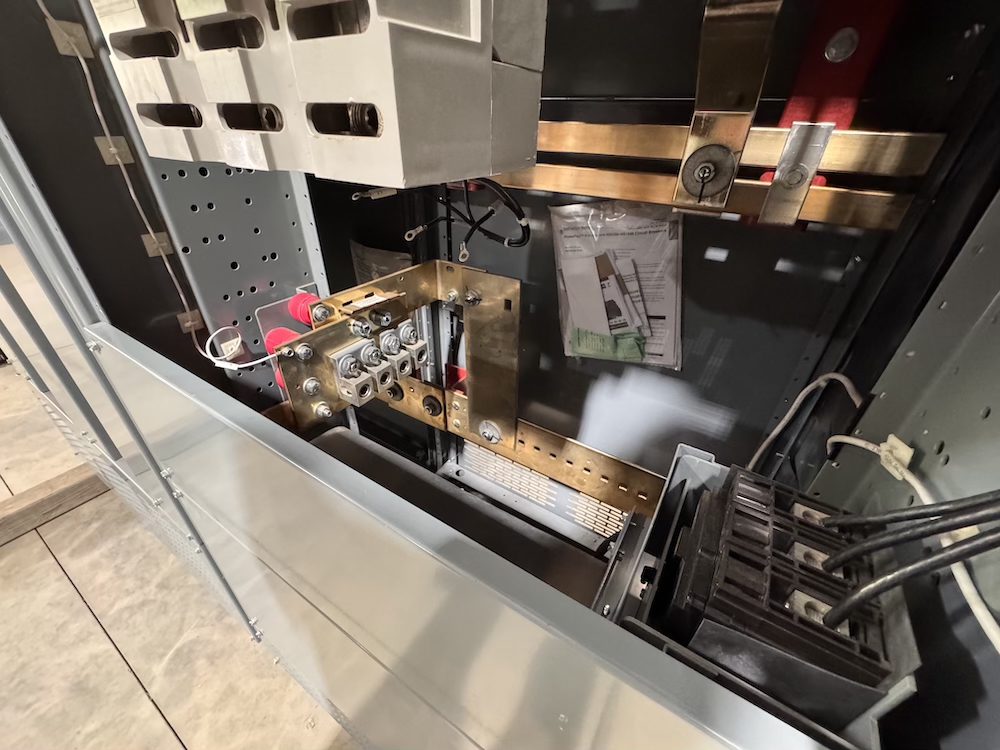

Connection = Pass-Through Bus
-
Max Feeder = L-/P-/M-Frame (1200A)
-
Double-Row – (78 CIRCUIT)
-
-
-
INSTALLED BREAKERS:
-
N/A (breakers and blanks can be installed upon request)
-
-

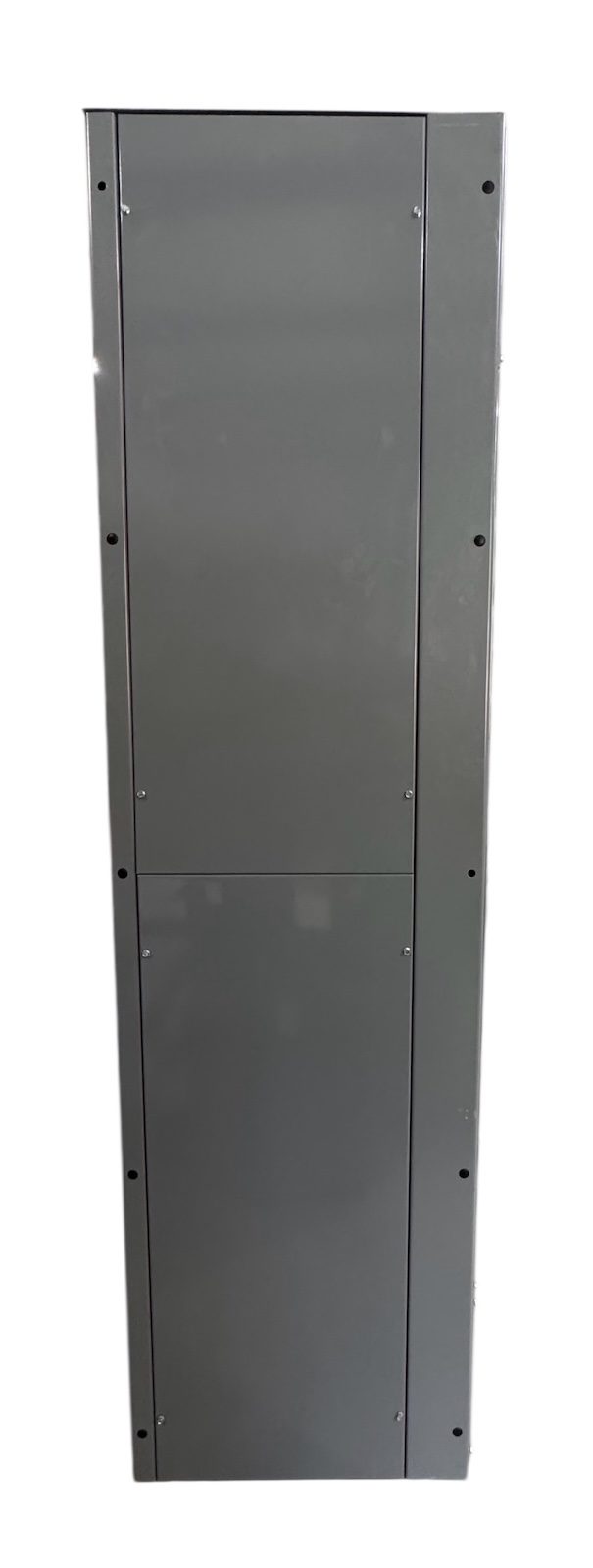

SECTION DIMENSIONS:
-
WIDTH = 42 in
-
HEIGHT = 92 in
-
DEPTH = 24 in
-
-
-

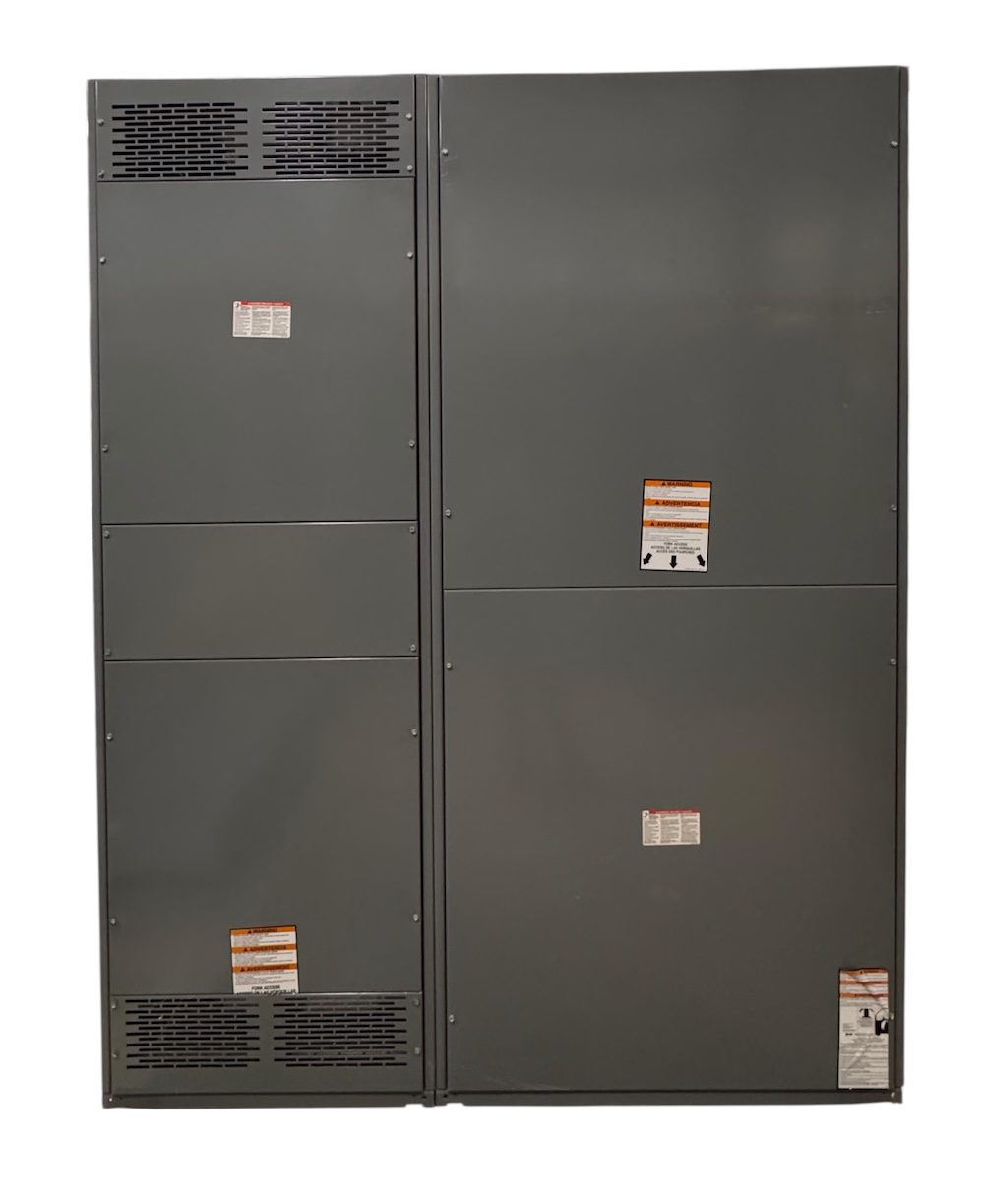

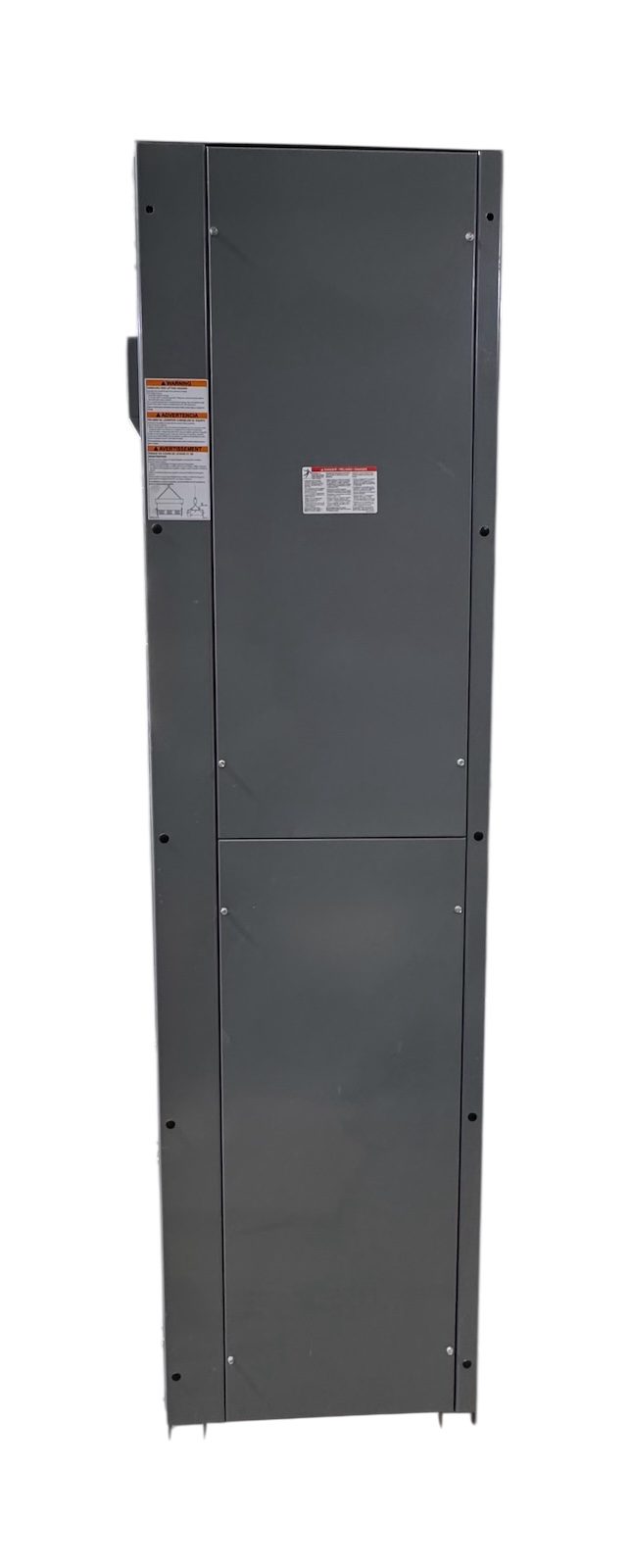

(Appearance May Vary From Photo)
-
For Freight Rates Please Contact Seller
-
One Year Warranty
-
24 Hour Emergency Service
C25 ()
