Description
-

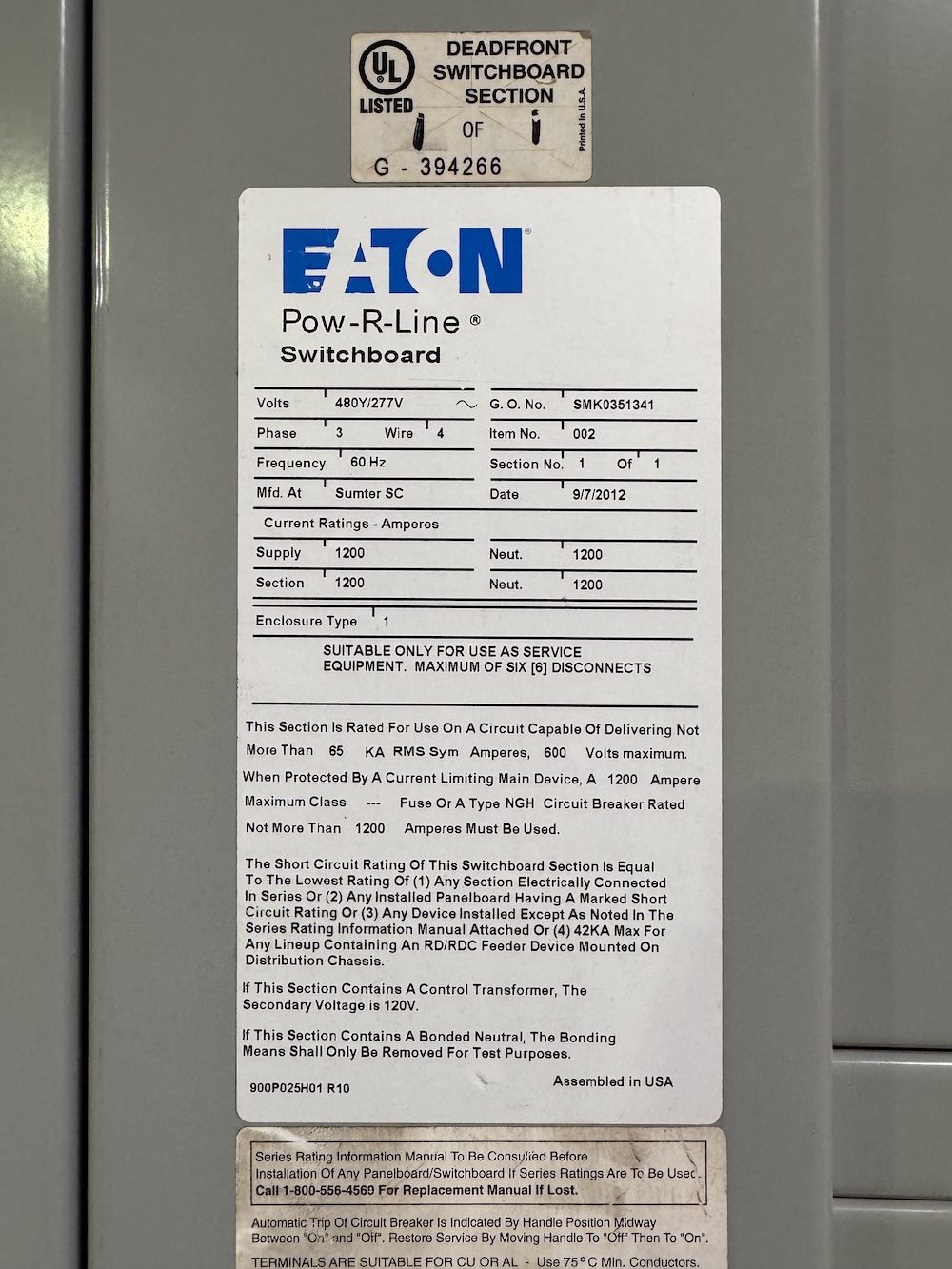

Eaton / Cutler Hammer
-
Type PRL4
-
3 Phase
-
4 Wire (Neutral Installed)
-
1200 Amp
-
480Y/277 Vac
-
NEMA 1 – (Indoor)
-

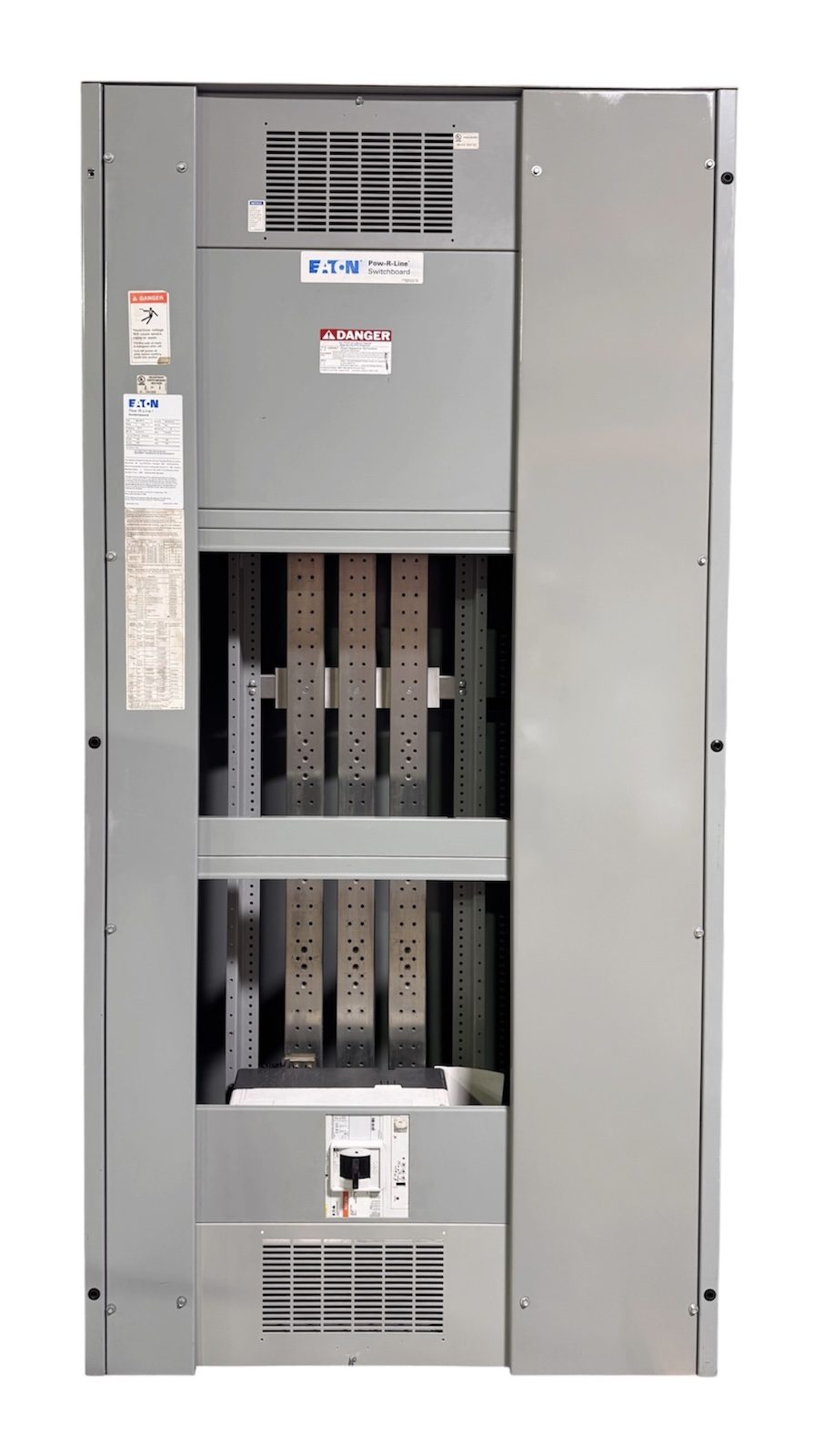

Pow-R-Line
-
Switchgear / Panelboard / Panel
-
Bottom/Top-Fed = Either (currently setup as bottom)
-
Connection = Main Breaker
-
Max Feeder = ND-/NGH/-Frame (1200A)
-

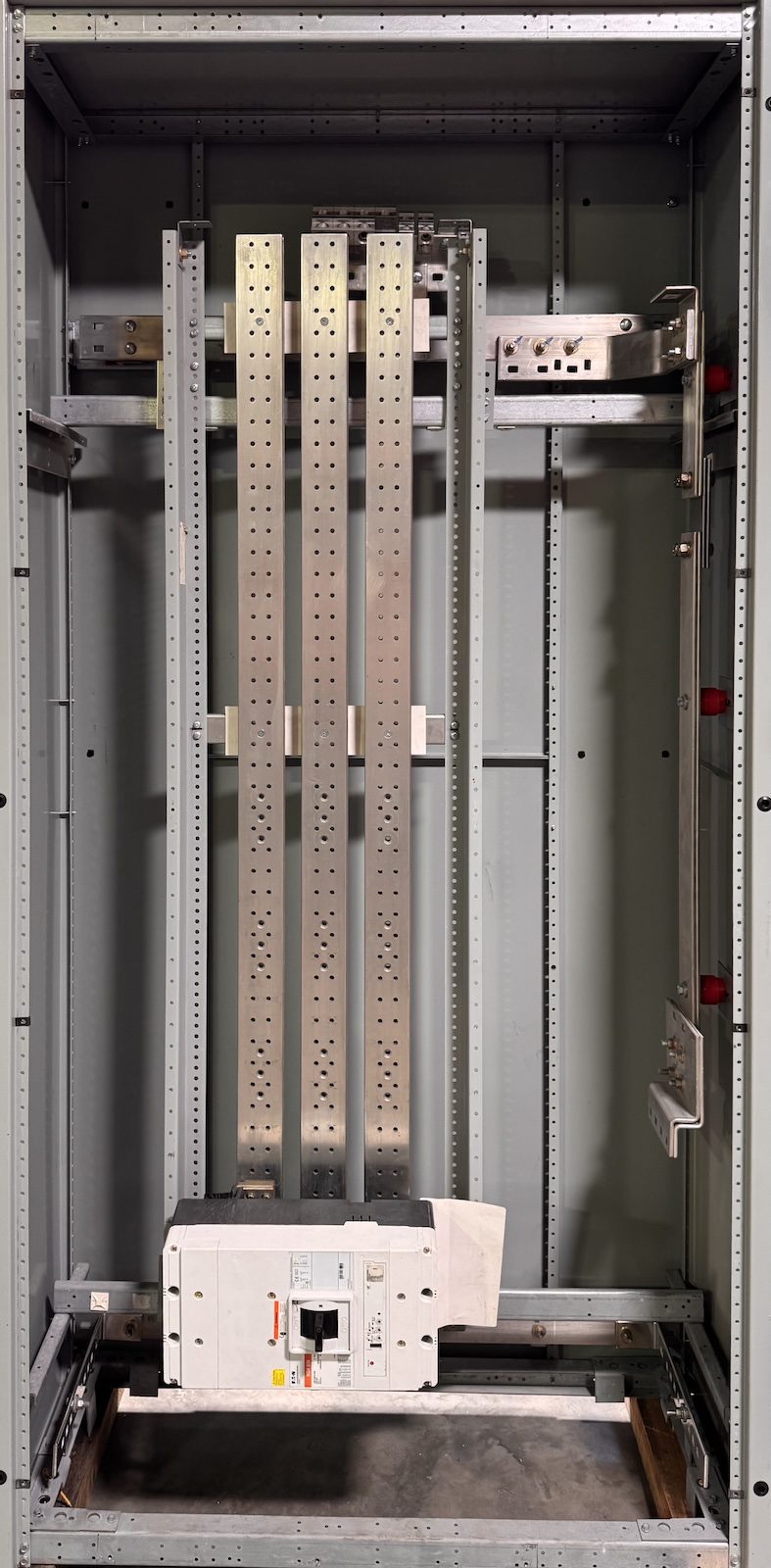

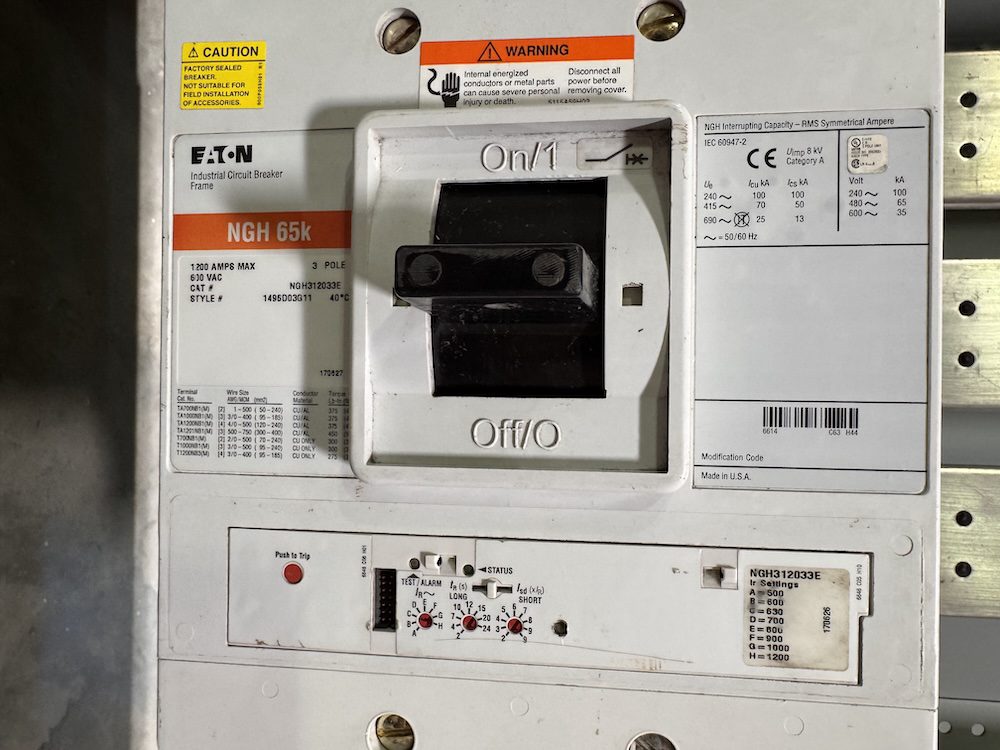

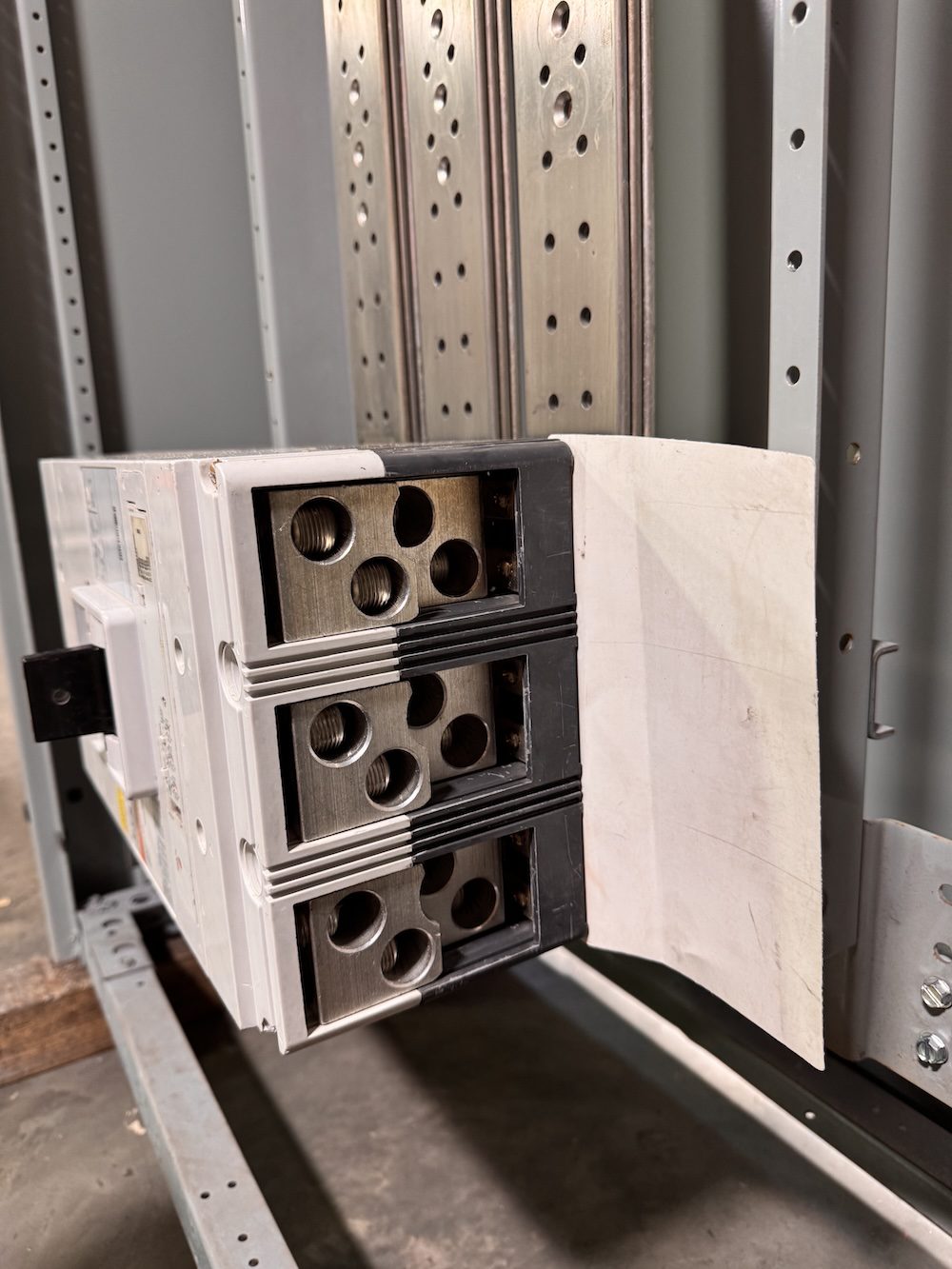

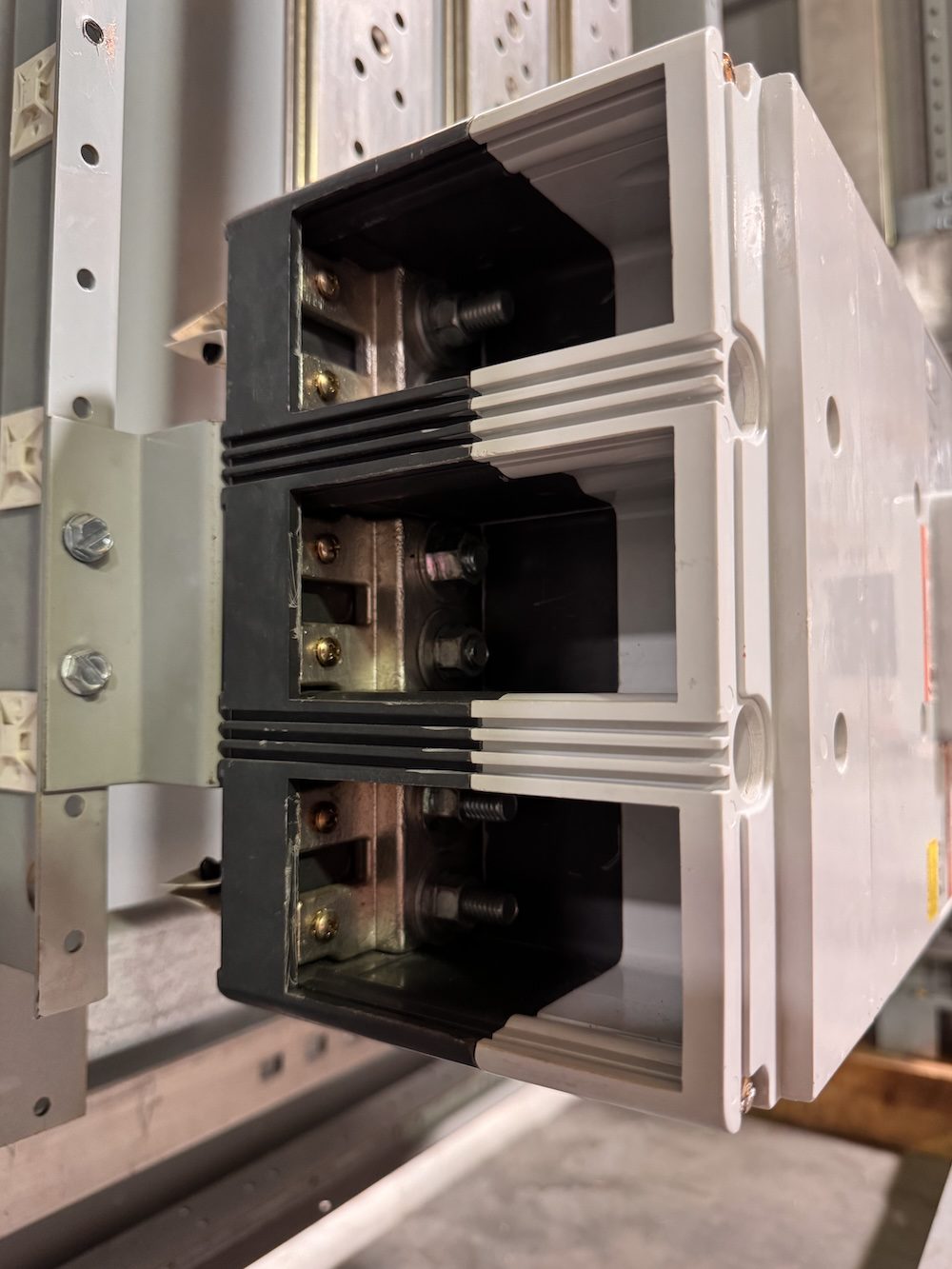

MAIN BREAKER:
-
Type = NGH-Frame
-
CAT# = NGH312033E
-
Amperage = 1200 Amp
-
AIC Rated = 65kA @ 480V
-
Trip Unit Type = Digitrip 310 RMS
-
Trip Unit Functions = LS
-
Long Time and Short Time
-
-
Breaker Mount = Bolt-On/Fixed
-
Condition = RECON
-
ACCESSORIES:
-
N/A (can be installed upon request: Shunt Trip, UV, Aux, etc.)
-
-
-
ADDONS:
-
(additional addons can be installed upon request: power metering, spd, etc)
-
-
INSTALLED BREAKERS:
-
N/A (breakers and blanks can be installed upon request)
-
-
DIMENSIONS:
-
WIDTH = 45 in
-
HEIGHT = 90 in
-
DEPTH = 18 in
-
-

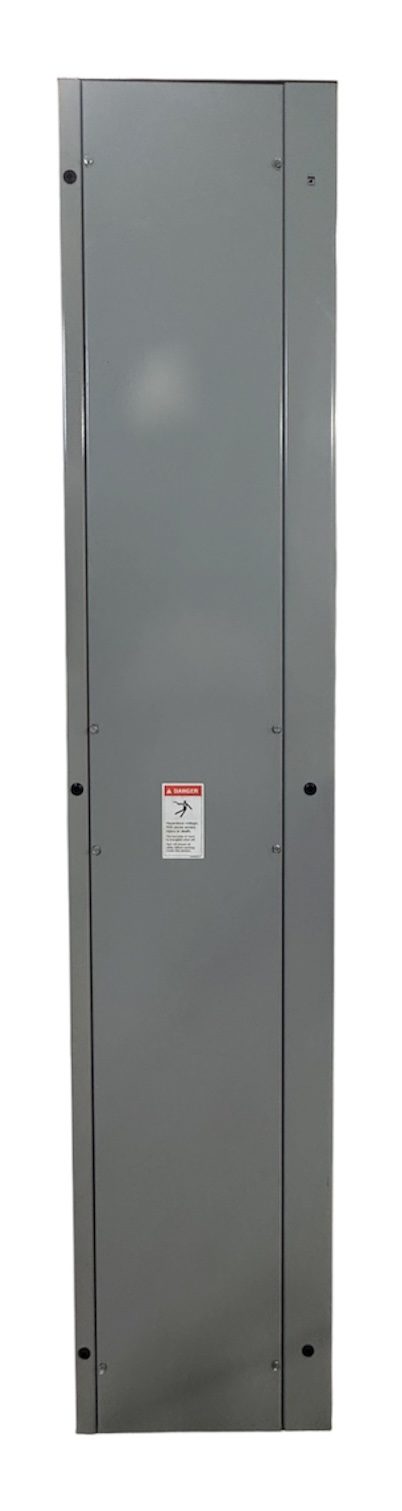

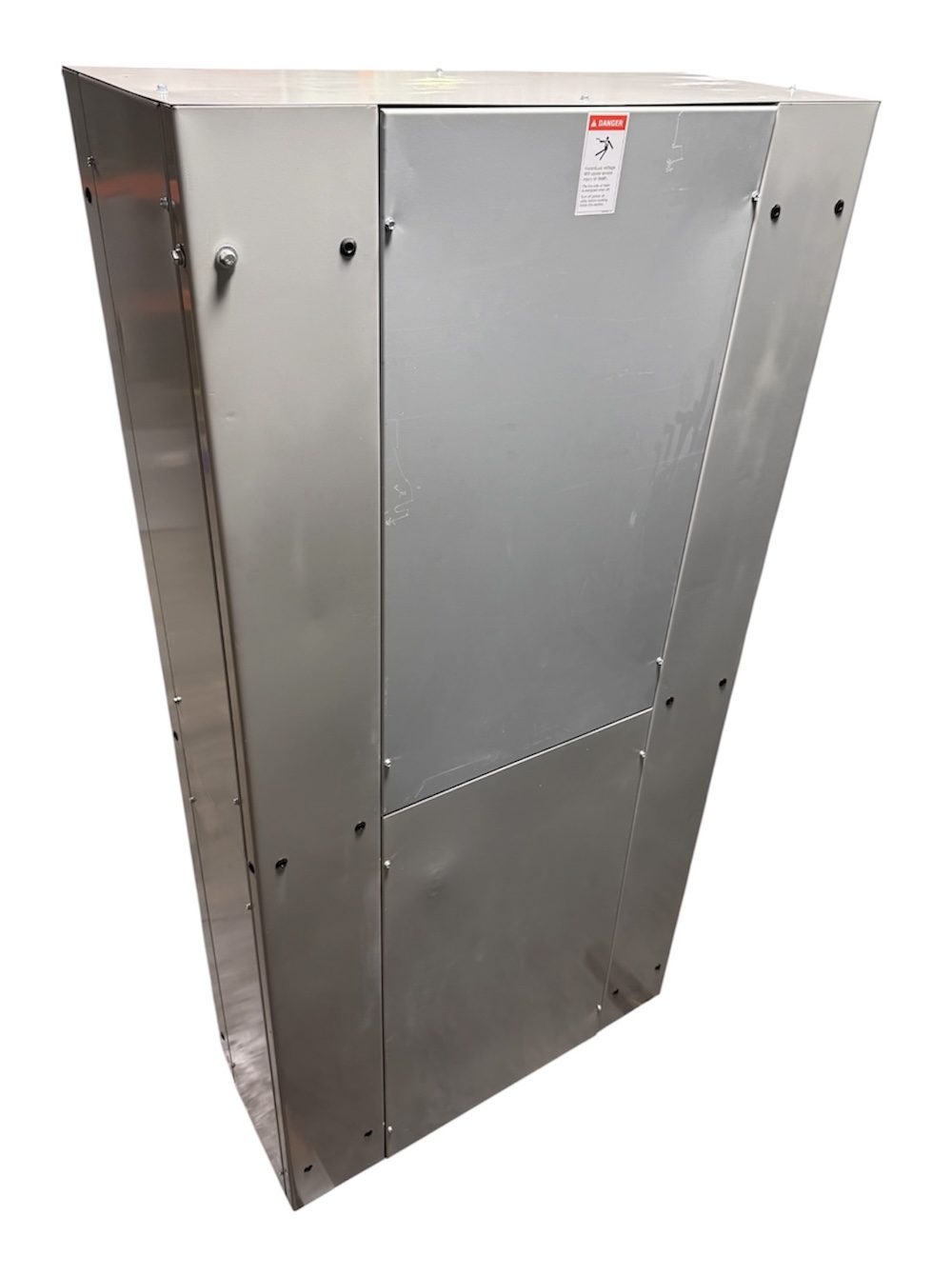

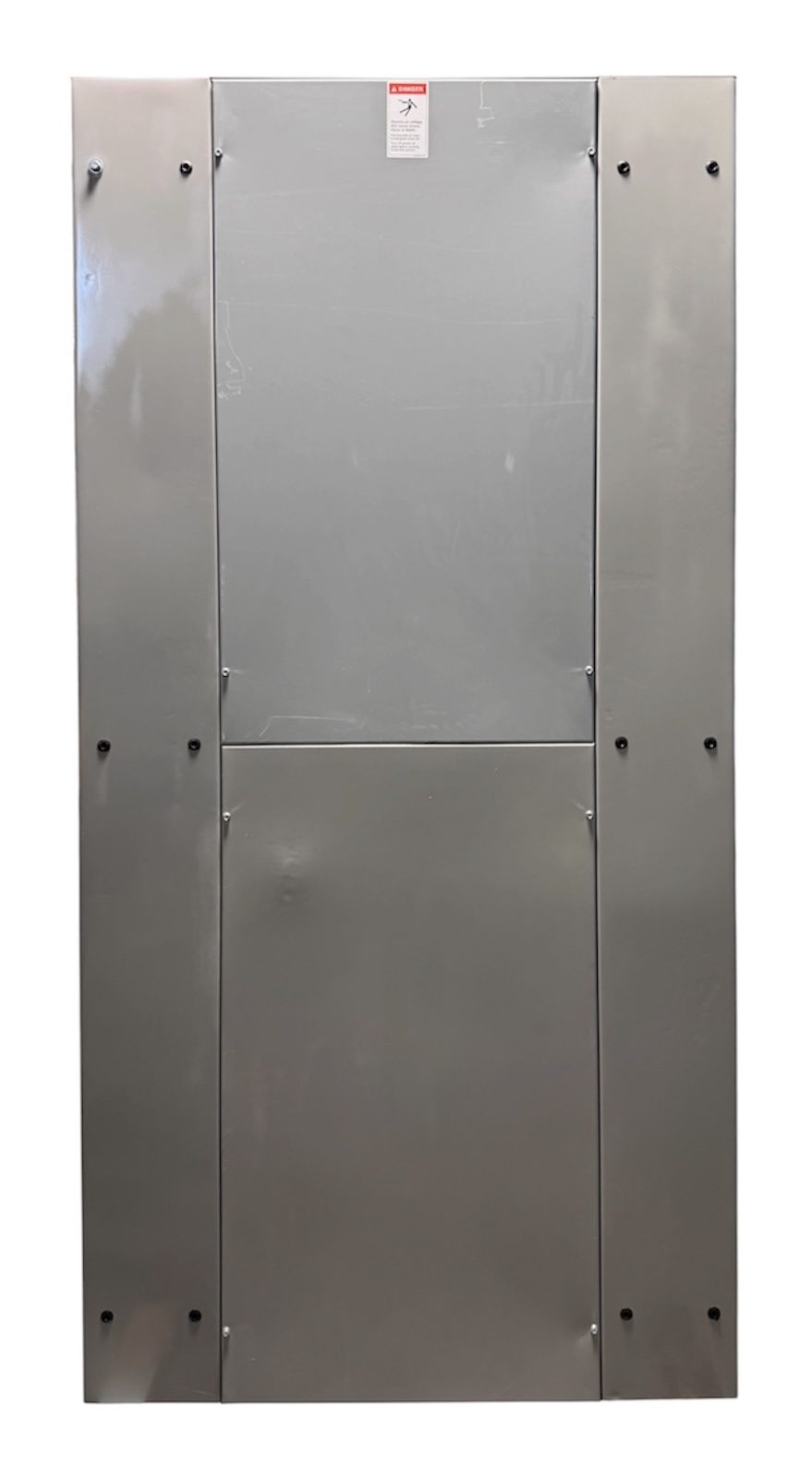

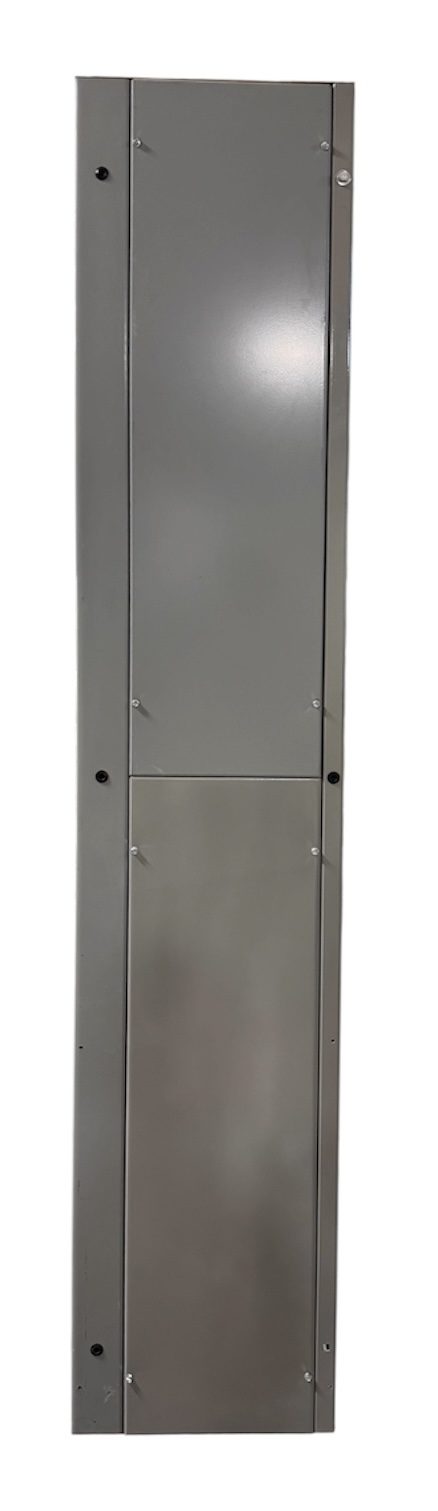

(Appearance May Vary From Photo)
-
For Freight Rates Please Contact Seller
-
One Year Warranty
-
24 Hour Emergency Service
